CURSOR13TE1F.S550

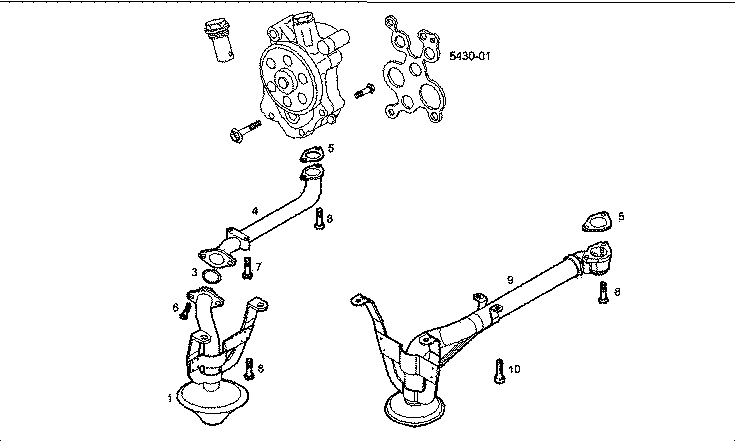

10306 SUCTION STRAINER
| Item | Part number | Description |
|---|---|---|
| 1 | 99475585 | SUCTION STRAINER [UP TO # 65726] |
| 3 | 17289481 | O-RING Ø37,69 MM SP=3,53 MM |
| 4 | 99475589 | OIL LINE [UP TO # 65726] |
| 5 | 500343518 | FLAT ENGINE GASKET |
| 6 | 16592224 | HEXAGON BOLT M8X55 MM |
| 7 | 16592524 | HEXAGON BOLT M8X70 MM |
| 8 | 16673734 | HEXAGON BOLT M8X25 MM |
| 9 | 504128916 | SUCTION STRAINER [FROM # 65727] |
| 10 | 504003976 | CYLIND-HEAD SCREW M8X1,25X16 MM |
