CURSOR13TE1F.S550

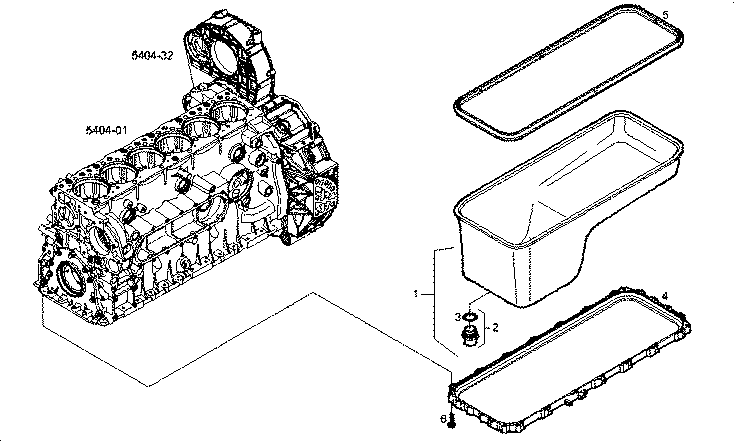

134261 ASSEMBLY-SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504385129 | ENGINE OIL SUMP ASSY |
| 2 | 504040826 | VALVE |
| 3 | 504040842 | SEAL GASKET |
| 4 | 504276421 | SPACING BAR [FROM # 104598] |
| 5 | 5801464913 | OIL SUMP GASKET |
| 6 | 16587525 | HEXAGON BOLT M10X45 MM |
