CURSOR13TE1F.S550

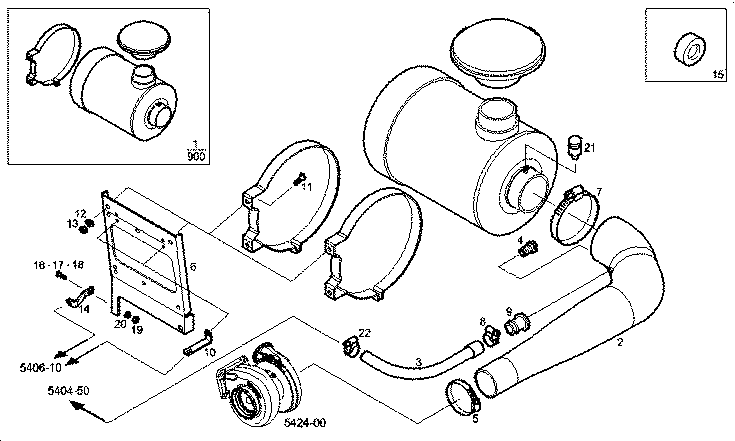

152748 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8025042 | AIR CLEANER ASSY |
| 2 | 5801791699 | FILTER HOSE |
| 3 | 5801793227 | RUBBER SLEEVE |
| 4 | 8015315 | PIPE SOCKET |
| 5 | 17765892 | HOSE CLIP Ø140/160 MM |
| 6 | 8040926 | SUPPORT |
| 7 | 17766393 | CLIP |
| 8 | 17764594 | HOSE CLIP |
| 9 | 8015133 | PIPE SOCKET |
| 10 | 8040928 | RETAINER |
| 11 | 16609825 | HEXAGON BOLT M12X1,75X25 |
| 12 | 17091074 | WASHER Ø12X24X2,8 MM |
| 13 | 17038425 | HEXAGON NUT M12 (8) |
| 14 | 8040927 | RETAINER |
| 15 | 17816214 | SPACER Ø10X8,5X18 MM |
| 16 | 16605635 | HEXAGON BOLT M8X25 MM |
| 17 | 16605724 | SCREW M8X1,25X30 |
| 18 | 16605424 | SCREW M8X16 MM (8.8) |
| 19 | 17037925 | HEXAGON NUT M8X1,25 |
| 20 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 21 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
| 22 | 18088392 | CLIP Ø16/25 MM |
