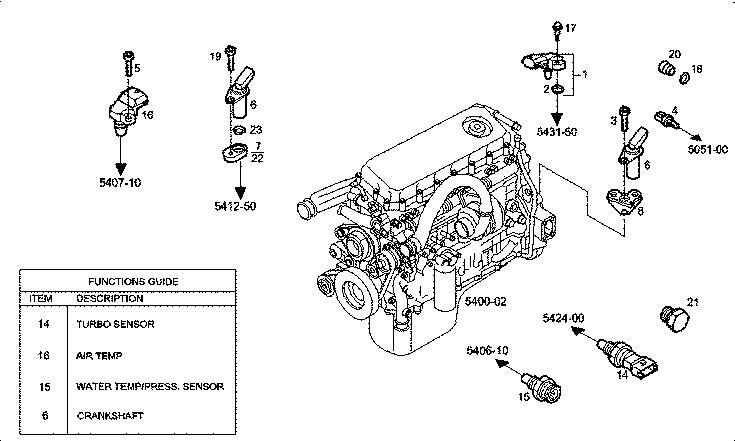

| Item |
Part number |
Description |
|
1 |
4890193 |
SENSOR OIL PRESS. & TEMPER. |
|
2 |
4895477 |
O-RING |
|
3 |
16688925 |
CYLIND-HEAD SCREW M6X10 |
|
4 |
504109620 |
SENSOR umidity detection [UP TO # 50587] |
|
5 |
16597225 |
HEXAGON BOLT M6X18 MM |
|
6 |
504096645 |
SENSOR |
|
7 |
504113543 |
SPACING BAR [UP TO # 56439] |
|
8 |
504113483 |
SPACING BAR |
|
14 |
500377533 |
SENSOR Pressure |
|
15 |
500382599 |
TEMP. TRANSMITTER PRESS. & TEMPER. |
|
16 |
504073323 |
SENSOR AIR PRESS. & TEMPER. [FROM # 158928] |
|
17 |
4899110 |
HEXAGON BOLT |
|
18 |
99489017 |
SEAL GASKET Ø12X20 MM SP=1,5 MM |
|
19 |
16689324 |
SCREW M6X25 |
|
20 |
16992211 |
THREADED PLUG M12X1,5 |
|
21 |
504167389 |
THREADED PLUG [FROM # 56440] |
|
22 |
504163664 |
CONNECTING PLATE |
|
23 |
17278481 |
O-RING Ø17,17 MM SP=1,78 MM |
