CURSOR13TE1F.S550

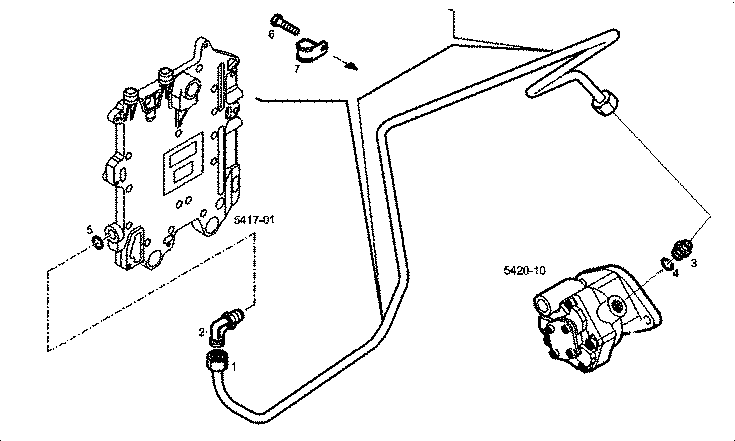

95509 PIPE TO FUEL SUPPLY PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504194550 | FUEL LINE |
| 2 | 16502715 | ELBOW COUPLING |
| 3 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 4 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 5 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
| 6 | 16597925 | HEXAGON BOLT M8X14 MM |
| 7 | 17316592 | PIPE CLIP |
