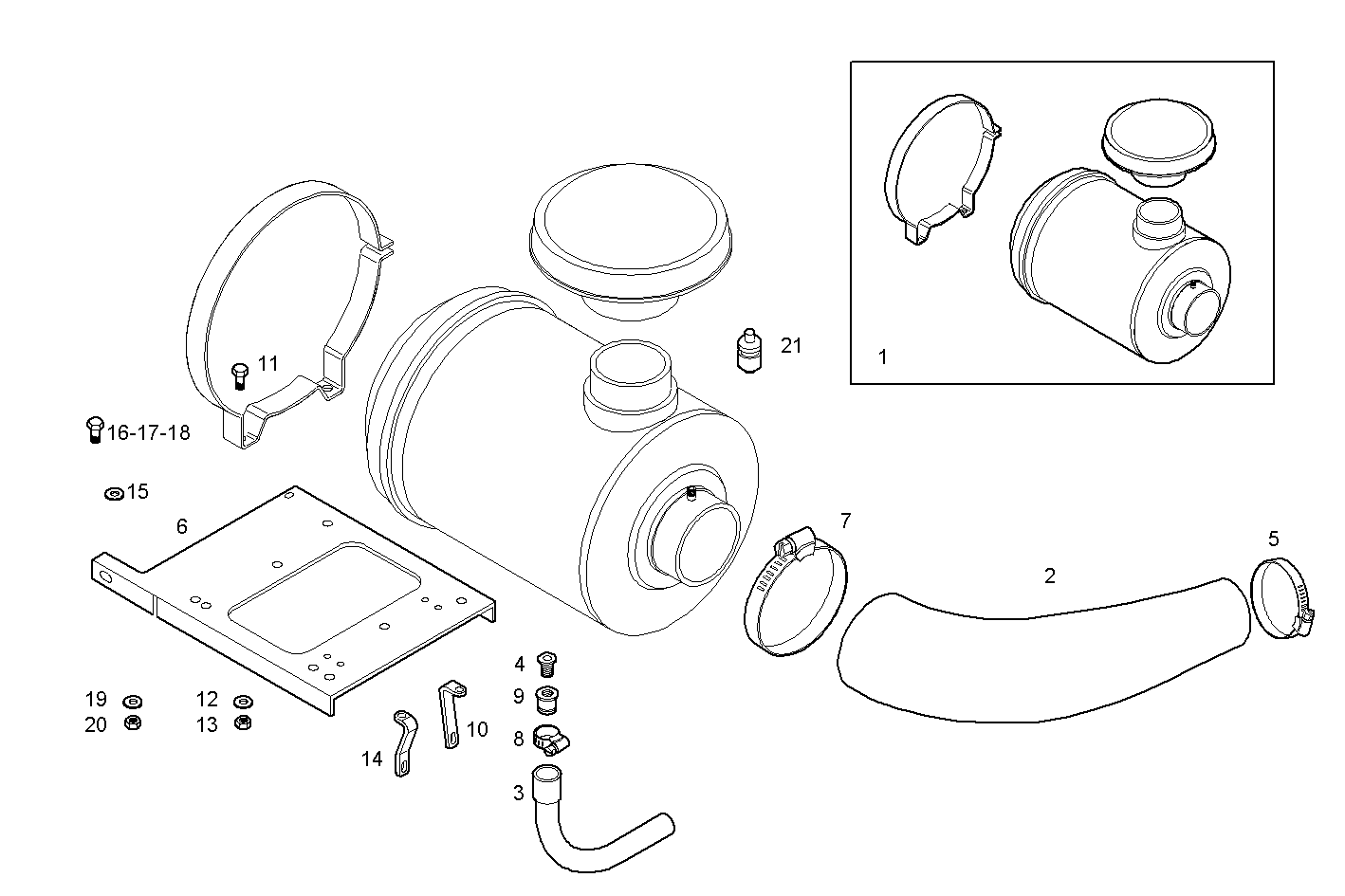

| Item |
Part number |
Description |
|
1 |
8025042 |
AIR CLEANER ASSY |
|
2 |
8040929 |
FILTER HOSE |
|
3 |
8041545 |
RUBBER SLEEVE |
|
4 |
8015315 |
PIPE SOCKET |
|
5 |
17765892 |
HOSE CLIP Ø140/160 MM |
|
6 |
8040926 |
SUPPORT |
|
7 |
17766393 |
CLIP |
|
8 |
17764791 |
CLIP Ø32/50 MM |
|
9 |
8015133 |
PIPE SOCKET |
|
10 |
8040928 |
RETAINER |
|
11 |
16609825 |
HEXAGON BOLT M12X1,75X25 |
|
12 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
13 |
17038425 |
HEXAGON NUT M12 (8) |
|
14 |
8040927 |
RETAINER |
|
15 |
17816214 |
SPACER Ø10X8,5X18 MM |
|
16 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
17 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
18 |
16605424 |
SCREW M8X16 MM (8.8) |
|
19 |
17037925 |
HEXAGON NUT M8X1,25 |
|
20 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
21 |
8027294 |
CHOCKED FILTER INDIC. MECHANICAL |
