CURSOR13TE3X.R991

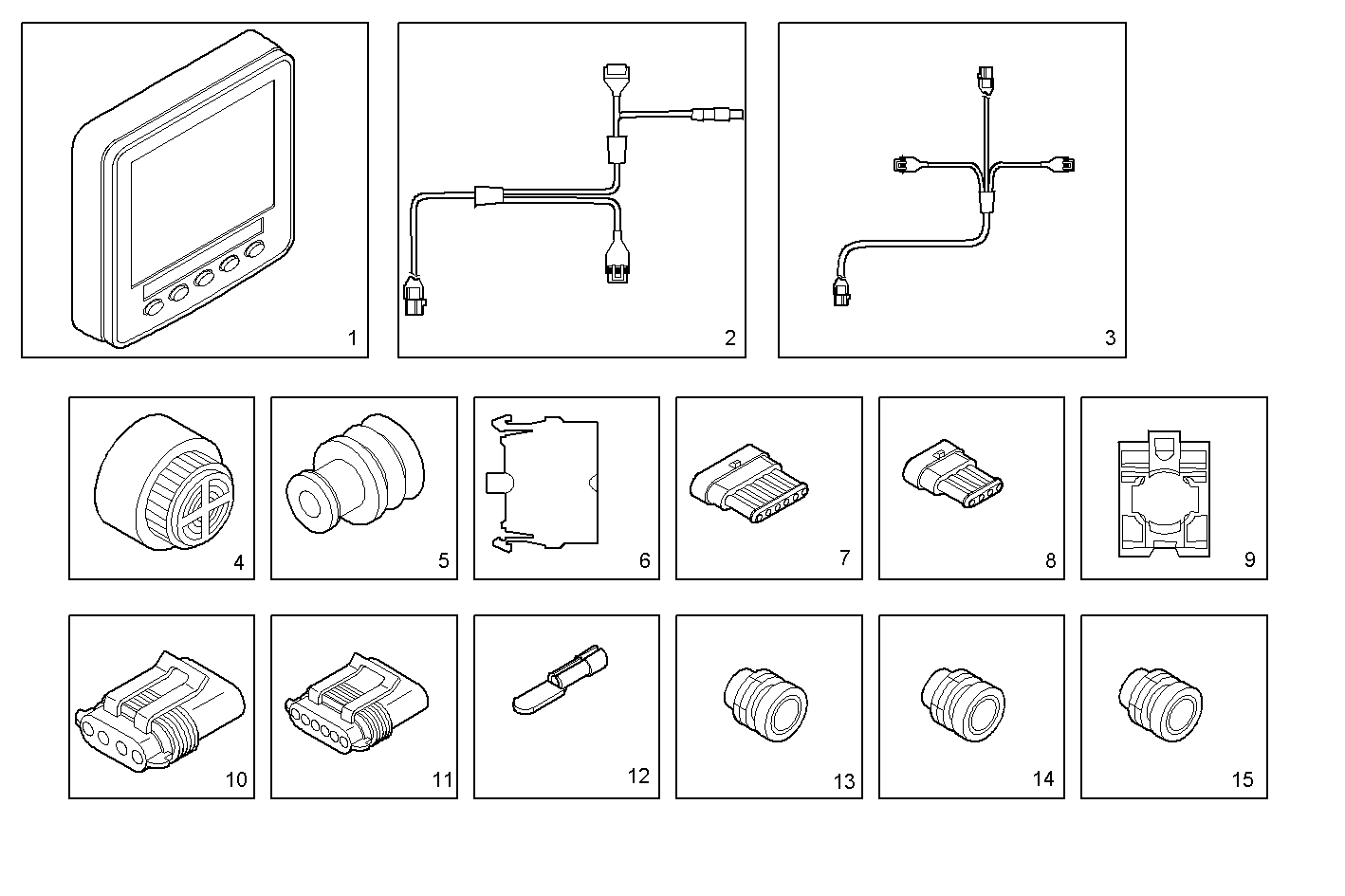

A38860505 DIGITAL PANEL 12/24V - fly-bridge 12-24V [FROM 06-07-07] [FROM 06-07-07]
| Item |
Part number |
Description |
|
1 |
8049275 |
CONTROL BOARD ASSY |
|
2 |
8049222 |
WIRE/CABLE |
|
3 |
8049220 |
WIRE/CABLE |
|
4 |
8035166 |
ACOUSTIC HORN |
|
5 |
4861936 |
RUBBER BUSH YELLOW |
|
6 |
8036427 |
SWITCH |
|
7 |
98435339 |
WIRE CONNECTOR |
|
8 |
98435337 |
WIRE CONNECTOR |
|
9 |
8036413 |
FASTENING BRACKET |
|
10 |
8033715 |
WIRE CONNECTOR ASSY |
|
11 |
8033717 |
WIRE CONNECTOR ASSY |
|
12 |
98435370 |
TERMINAL SEZ 0,5-1,5 MMQ |
|
13 |
8036411 |
PUSH BUTTON RED |
|
14 |
8036409 |
PUSH BUTTON BLACK COL. |
|
15 |
8036412 |
PUSH BUTTON GREEN |
