CURSOR87TE1F.S550

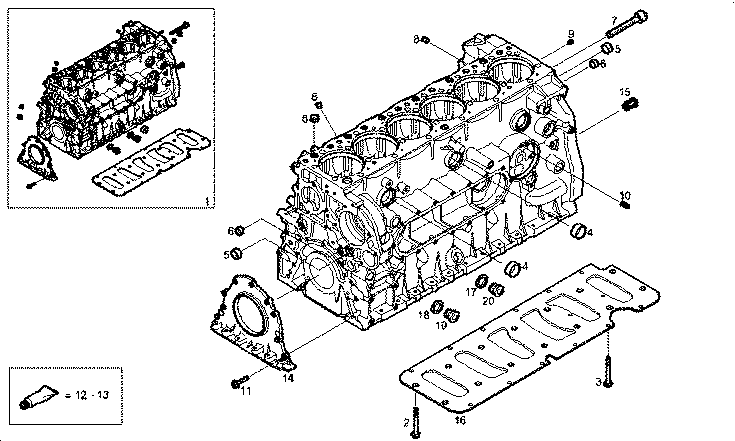

101685 ENGINE BLOCK ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 504219039 | CRANKCASE |
| 2 | 504125417 | HEXAGON BOLT M16X2X68 MM |
| 3 | 18139424 | HEXAGON BOLT M10X20 MM |
| 4 | 16991370 | LOCK PLUG Ø45 MM |
| 5 | 16990870 | LOCK PLUG Ø28 MM |
| 6 | 16990670 | LOCK PLUG Ø22 MM |
| 7 | 500356932 | LOCK PLUG Ø12 MM |
| 8 | 504051237 | THREADED PLUG DIAM=1/4" |
| 9 | 504051236 | THREADED PLUG DIAM=1/8" |
| 10 | 500314967 | DOWEL PIN Ø10 MM |
| 11 | 16673735 | HEXAGON BOLT M8X25 MM |
| 12 | 2992695 | ADHESIVE/STICKER LOCTITE |
| 13 | 2995644 | ADHESIVE/STICKER |
| 14 | 504125098 | FRONT C.CASE COVER |
| 15 | 504142601 | VALVE |
| 16 | 504127723 | STIFFENING PLATE |
| 17 | 99489017 | SEAL GASKET Ø12X20 MM SP=1,5 MM |
| 18 | 5801398260 | SEAL GASKET DIAM=18 MM |
| 19 | 16992515 | THREADED PLUG M18X1,5 |
| 20 | 11903211 | LOCK PLUG M12X1,25 |
