CURSOR87TE1F.S550

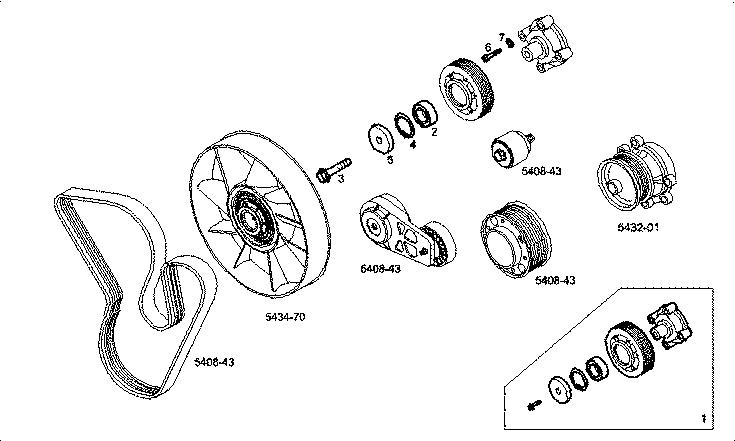

129741 VENTILATOR CONTROL
| Item | Part number | Description |
|---|---|---|
| 1 | 99469717 | SUPPORT ASSY |
| 2 | 98427607 | ENGINE BEARINGS |
| 3 | 16676934 | HEXAGON BOLT M10X1,5X80 MM |
| 4 | 16874776 | CIRCLIP Ø85,5 MM [from 10-92] |
| 5 | 99474237 | WASHER |
| 6 | 16691124 | SOCKET-HEAD SCREW M8X50 MM |
| 7 | 17094824 | WASHER Ø8,40X15 MM |
