CURSOR87TE1F.S550

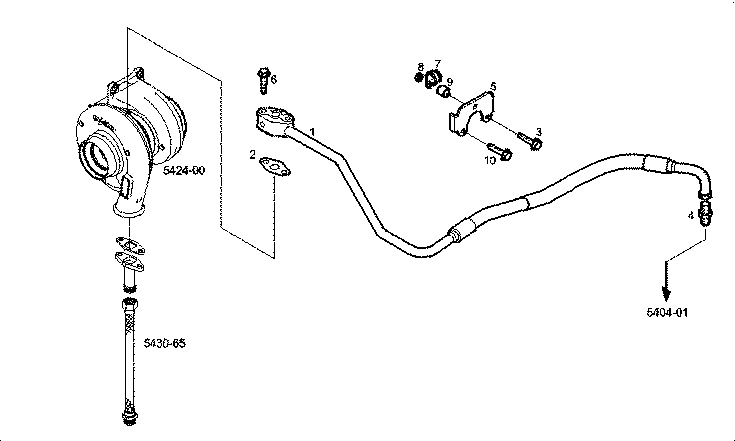

129746 OIL DELIVERY LINE
| Item | Part number | Description |
|---|---|---|
| 1 | 5801472547 | OIL LINE |
| 2 | 5801417018 | FLAT GASKET ENGINE |
| 3 | 16673835 | HEXAGON BOLT M8X30 MM |
| 4 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 5 | 504213767 | RETAINER |
| 6 | 16586625 | HEXAGON BOLT M8X35 MM |
| 7 | 10450590 | PIPE CLIP Ø18 MM |
| 8 | 17037925 | HEXAGON NUT M8X1,25 |
| 9 | 17816214 | SPACER Ø10X8,5X18 MM |
| 10 | 16691424 | HEXAGON BOLT M8X65 |
