CURSOR87TE1F.S550

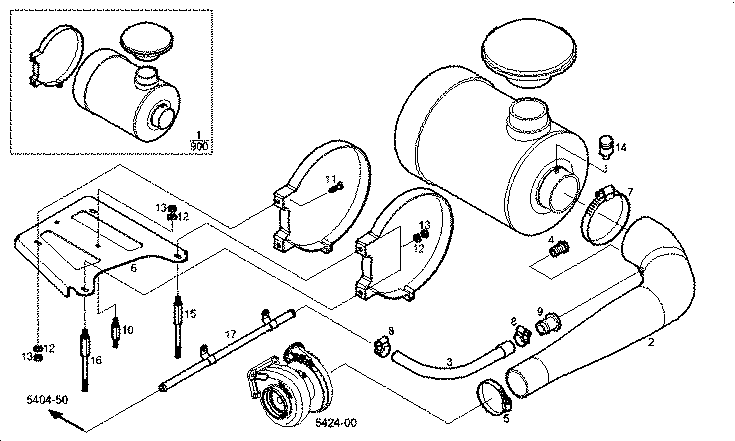

129779 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8041166 | AIR CLEANER ASSY |
| 2 | 5801489784 | FILTER HOSE |
| 3 | 8044962 | RUBBER SLEEVE |
| 4 | 8015315 | PIPE SOCKET |
| 5 | 17765494 | CLIP dia. = 100/120 |
| 6 | 8044683 | FILTER SUPPORT |
| 7 | 17765791 | CLIP DIA 130/150 [up to 10-93] |
| 8 | 17764594 | HOSE CLIP |
| 9 | 8015133 | PIPE SOCKET |
| 10 | 8044745 | SPACING BAR |
| 11 | 18139424 | HEXAGON BOLT M10X20 MM |
| 12 | 17090174 | SPRING WASHER Ø10X20 MM |
| 13 | 17038131 | HEXAGON NUT M10 |
| 14 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
| 15 | 8046579 | SPACING BAR |
| 16 | 8044744 | SPACING BAR |
| 17 | 8044952 | BREATHER PIPE |
