CURSOR87TE1F.S550

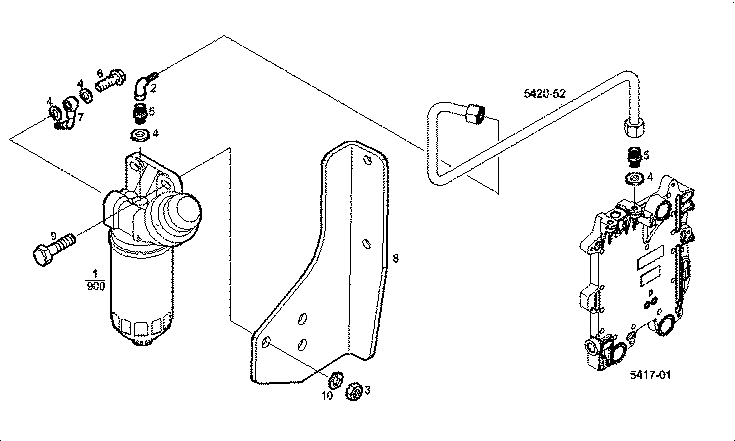

129795 FUEL PREFILTER
| Item | Part number | Description |
|---|---|---|
| 1 | 504057743 | PREFILTER ASSY |
| 2 | 16504114 | ELBOW COUPLING M18X1,5 |
| 3 | 17038131 | HEXAGON NUT M10 |
| 4 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
| 5 | 8014143 | PIPE SOCKET M14X1,5 |
| 6 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 7 | 61321984 | ELBOW COUPLING |
| 8 | 8044811 | FASTENING BRACKET |
| 9 | 16609424 | SCREW M10x32 MM |
| 10 | 17090174 | SPRING WASHER Ø10X20 MM |
