CURSOR87TE1F.S550

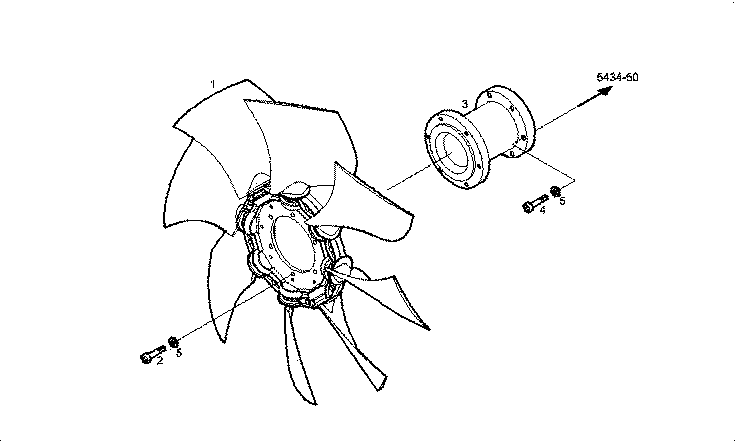

130004 FAN ASSEMBLY

Iveco/FPT FAN ASSEMBLY

Item Part number Description
1 5801545419 FAN
2 16690724 CYLIND-HEAD SCREW M8X30 MM
3 8045750 HUB
4 16690924 CYLIND-HEAD SCREW M8X40 MM
5 17096824 WASHER Ø8,40X15 MM
