CURSOR87TE1F.S550

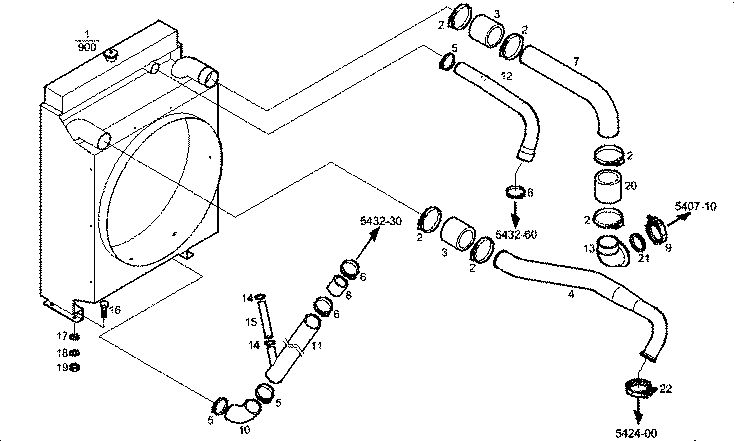

130111 OVERSIZE RADIATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8044662 | WATER RADIATOR |
| 2 | 17765291 | CLIP Ø80/100 MM |
| 3 | 8047693 | TURBOCHARGER HOSE |
| 4 | 5801547843 | AIR PIPE/DUCT |
| 5 | 17764991 | CLIP Ø50/70 MM |
| 6 | 17764891 | CLIP Ø40/60 MM |
| 7 | 5801547844 | AIR PIPE/DUCT |
| 8 | 98421391 | RUBBER SLEEVE [UP TO 30-11-07] |
| 9 | 99435103 | CLIP |
| 10 | 8048357 | WATER HOSE |
| 11 | 8046189 | WATER PIPE |
| 12 | 5801547848 | WATER HOSE |
| 13 | 8041915 | CONNECTOR SLEEVE |
| 14 | 18087993 | CLIP Ø8/16 MM |
| 15 | 17724687 | HOSE |
| 16 | 16612224 | HEXAGON BOLT M14X30 MM |
| 17 | 17095524 | WASHER |
| 18 | 17091674 | WASHER Ø14X27X3,0 MM |
| 19 | 17038725 | NUT M14 |
| 20 | 8030531 | TURBOCHARGER HOSE |
| 21 | 17284881 | O-RING |
| 22 | 4800661 | CLIP Ø 75 mm. |
