CURSOR87TE1F.S550

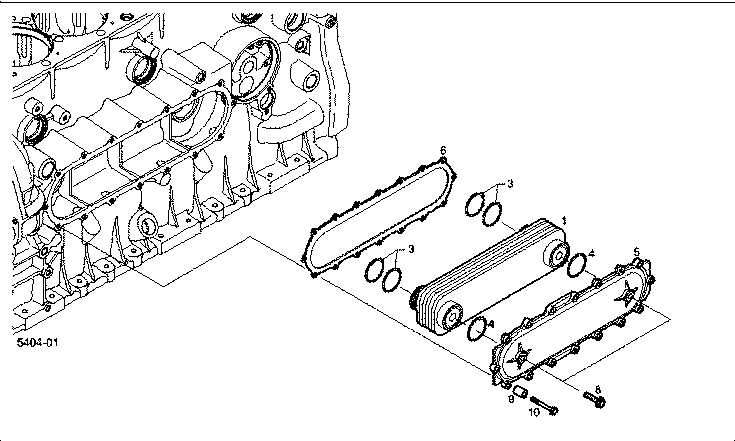

74805 HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 504127469 | OIL COOLER |
| 3 | 17289781 | O-RING Ø47,22 MM SP=3,55 MM |
| 4 | 17283481 | O-RING Ø42,5 MM SP=2,6 MM |
| 5 | 504127468 | HEAT EXCHANG.COVER |
| 6 | 504128027 | FLAT ENGINE GASKET |
| 8 | 16588025 | HEXAGON BOLT M12X30 MM |
| 9 | 17816414 | SPACING BAR Ø8,5X18 MM SP=20 MM |
| 10 | 16674434 | HEXAGON BOLT M8X50 MM |
