CURSOR87TE1F.S550

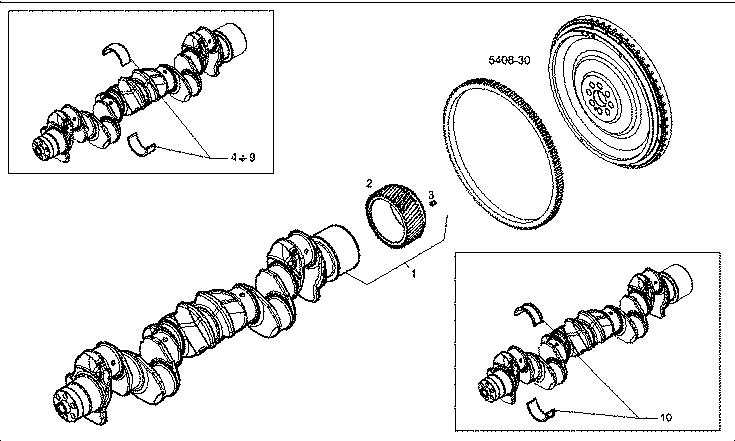

76791 CRANK SHAFT ASSEMBLY
| Item | Part number | Description |
|---|---|---|
| 1 | 504128849 | CRANK SHAFT ASSY |
| 2 | 504124624 | TIMING DRIVE GEAR |
| 3 | 17275410 | DOWEL PIN Ø8 MM |
| 4 | 2996584 | MAIN BEARING SET STD. RED |
| 5 | 2996585 | MAIN BEARING SET STD. GREEN |
| 6 | 2996586 | MAIN BEARING SET -0,127 RED BLACK |
| 7 | 2996587 | MAIN BEARING SET -0,127 GREEN BLACK |
| 8 | 2996588 | MAIN BEARING SET -0,254 RED |
| 9 | 2996589 | MAIN BEARING SET -0,508 ROSSO |
| 10 | 2996590 | THRUSTRING SET STD. (ENGINE) |
