F1AE0481B*A301

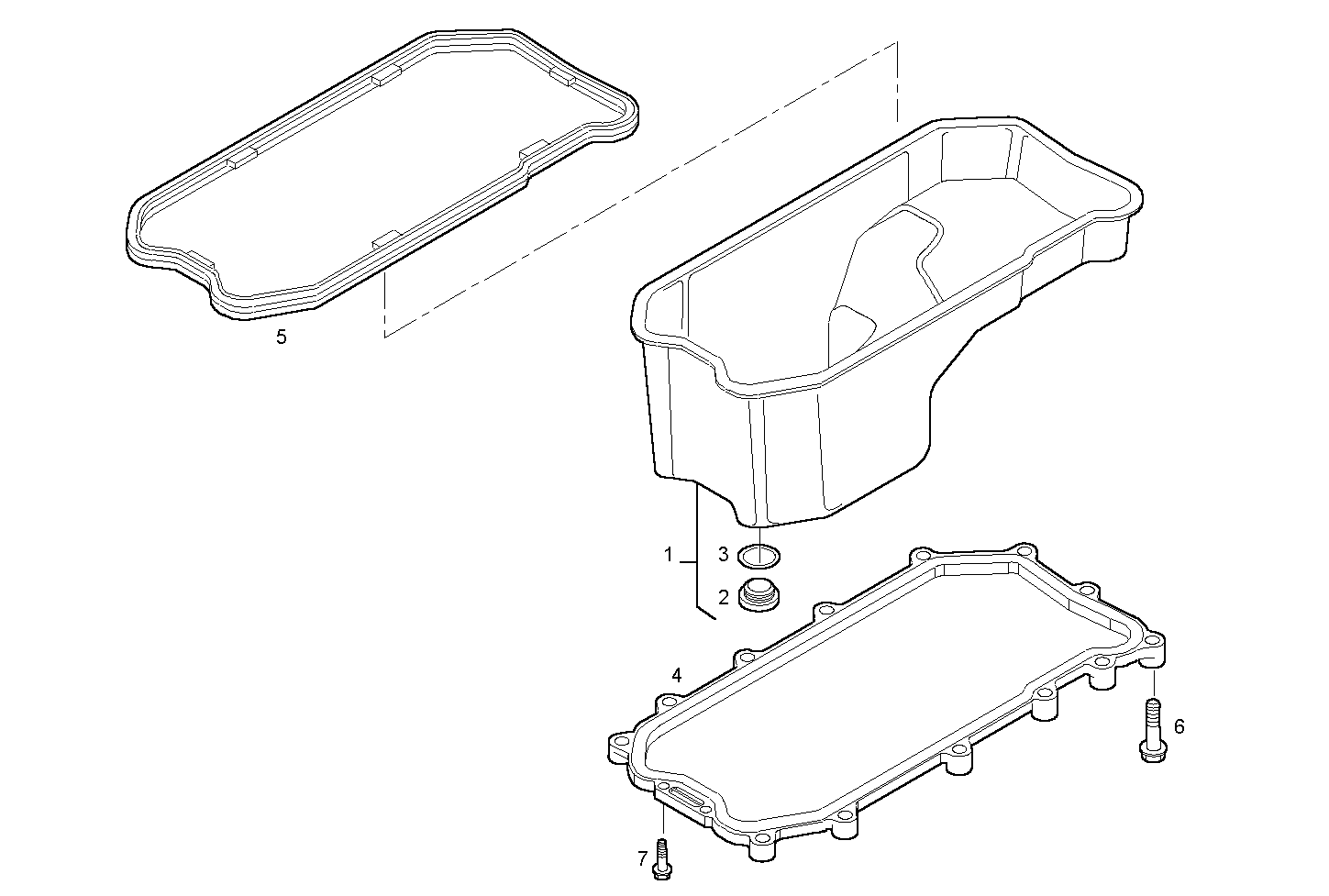

0420.168 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504063576 | OIL SUMP ASSY |
| 2 | 4847102 | THREADED PLUG |
| 3 | 17282181 | O-RING Ø21,8 MM SP=2,6 MM |
| 4 | 504018341 | SUPPORT |
| 5 | 504018342 | OIL SUMP GASKET |
| 6 | 16673934 | HEXAGON BOLT M8X35 MM |
| 7 | 18137724 | SCREW M6X30 MM |
