F1AE0481B*A301

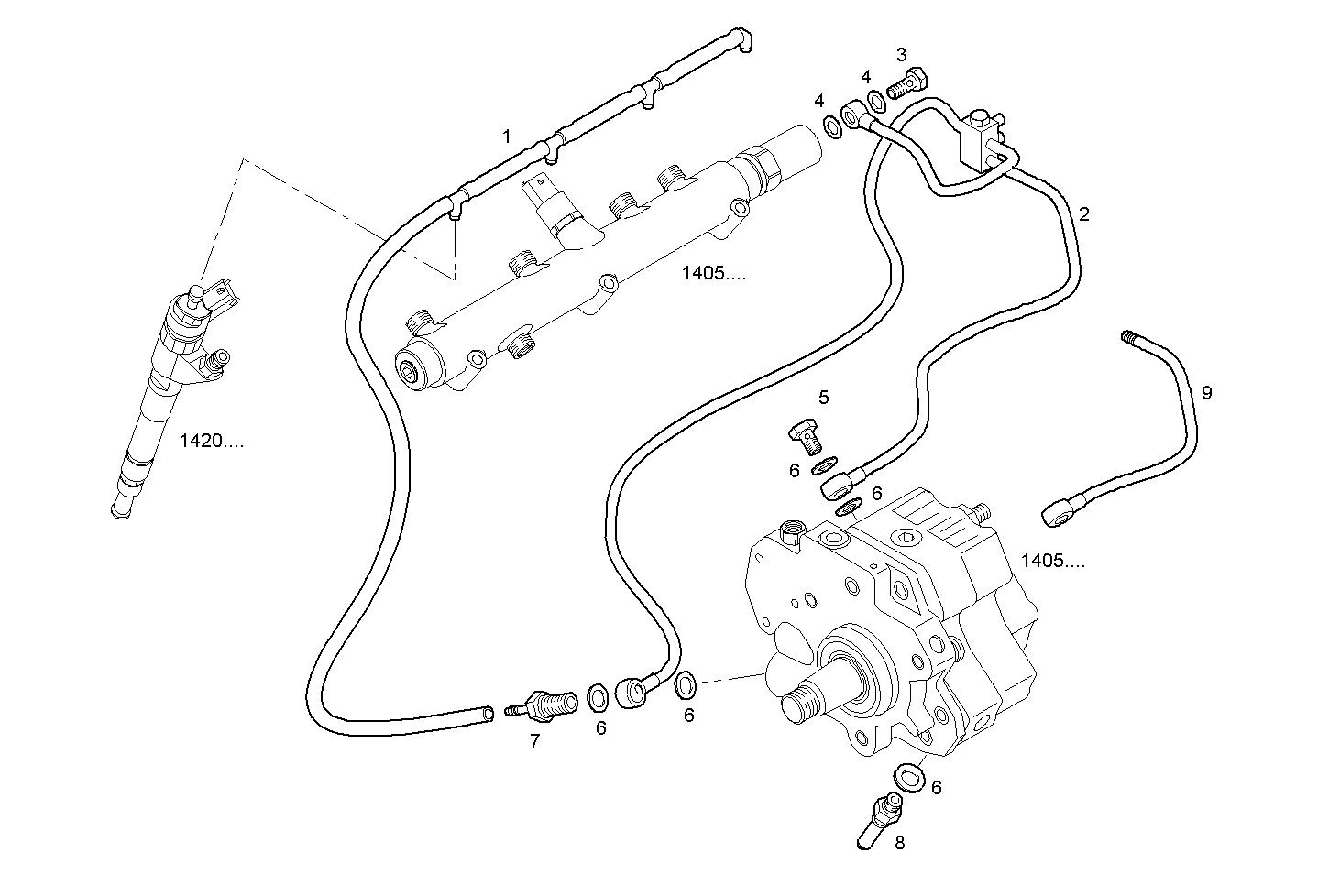

2030.207 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 500392262 | FUEL LINE |
| 2 | 504074150 | FUEL LINE [UP TO # 109032] |
| 3 | 16511414 | SCREW CONNECTOR |
| 4 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 5 | 16511214 | SCREW CONNECTOR M12X1,5X30 MM |
| 6 | 10298460 | SEAL GASKET Ø12X18 MM SP=1,5 MM |
| 7 | 500391535 | SCREW CONNECTOR M12X1,5 |
| 8 | 500398308 | SCREW CONNECTOR M12X1,5 |
| 9 | 504088735 | FUEL LINE [FROM # 109033] |
