F1AE0481B*C001

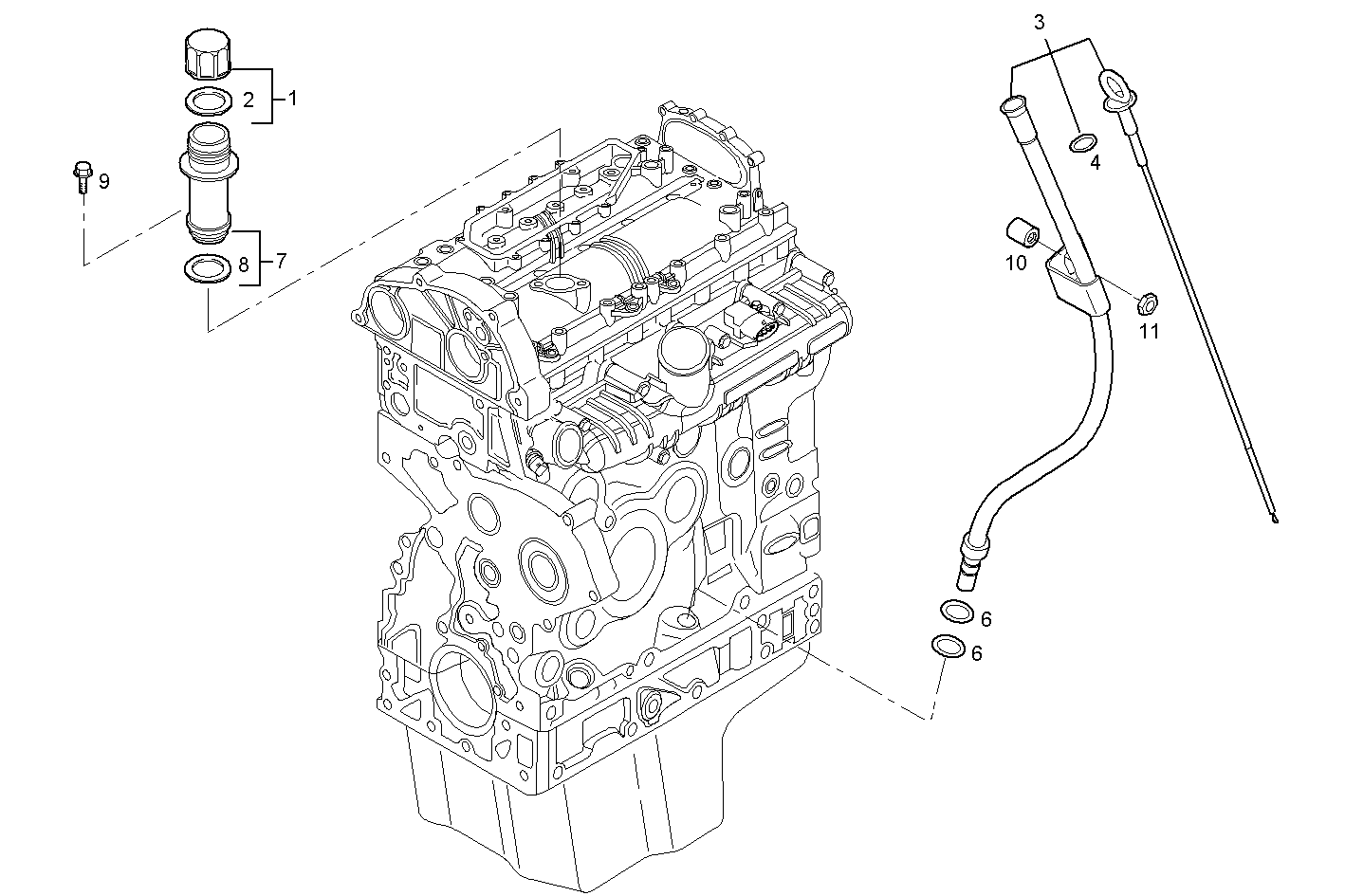

2700.032 OIL DIPSTICK & FILLER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 500301568 | OIL FILLER PLUG ASSY |
| 2 | 17295480 | O-RING 5,33x37,46 |
| 3 | 504237987 | OIL DIPSTICK ASSY |
| 4 | 504027969 | O-RING |
| 6 | 17277981 | O-RING 1,78x9,25 |
| 7 | 504026757 | OIL FILLER PIPE |
| 8 | 17283081 | O-RING Ø36,17X2,62 MM |
| 9 | 16729324 | STUD M8X12X20 MM |
| 10 | 17816314 | SPACING BAR Ø8,5X18 MM SP=15 MM |
| 11 | 17044725 | HEXAGON NUT M8 |
