F1AE0481F*A101

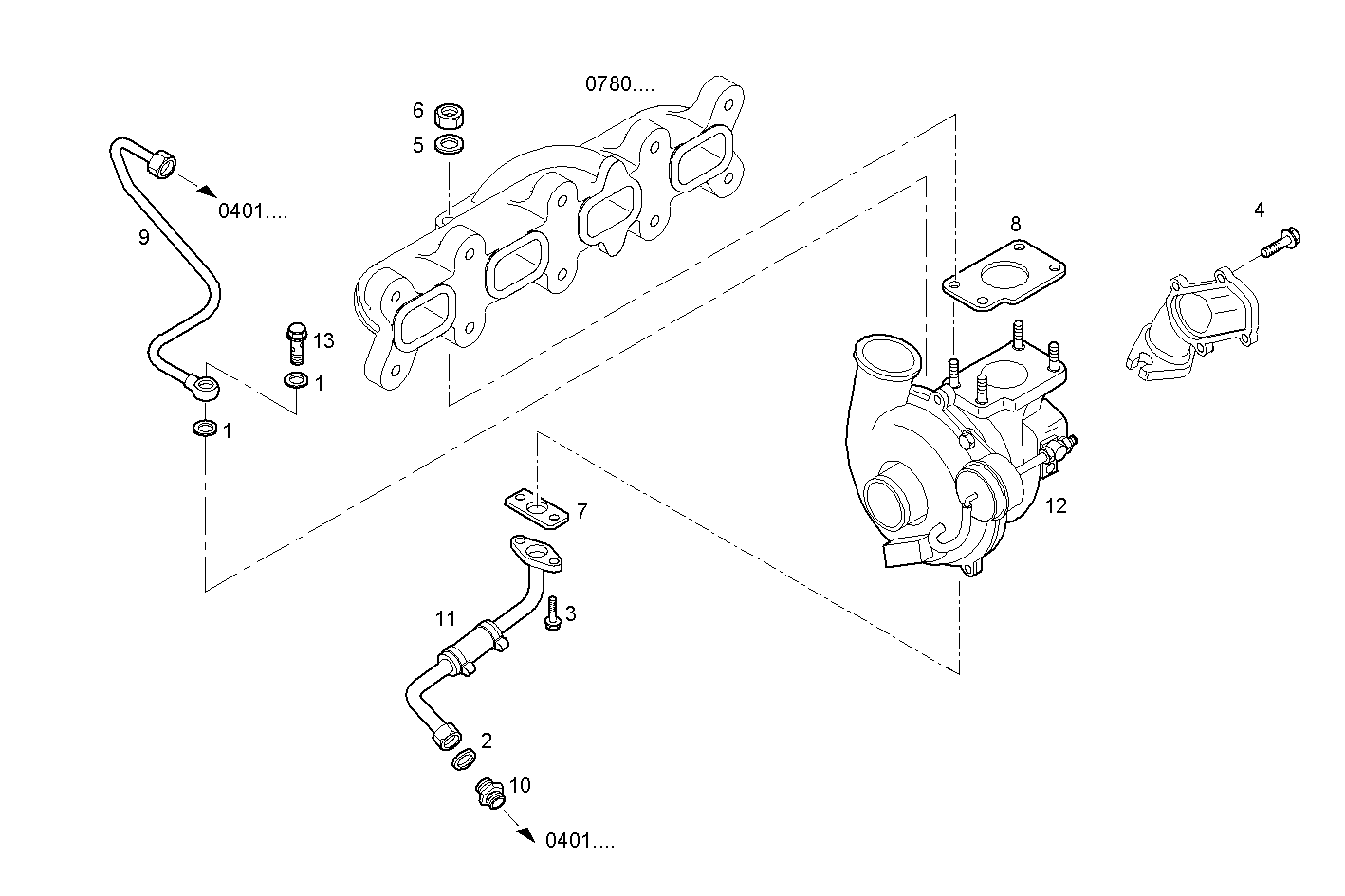

2400.321 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 4858607 WASHER Ø12X17 MM SP=1,5 MM
2 11270460 GASKET Ø17X21X1,5 MM
3 16585870 HEXAGON BOLT M6X20
4 16673735 HEXAGON BOLT M8X25 MM
5 17094914 WASHER 8x16
6 500322677 HEXAGON NUT M8
7 500370706 FLAT ENGINE GASKET
8 500378462 EXH. MANIFOLD GKT
9 504044738 OIL LINE
10 504102023 SCREW CONNECTOR
11 504106695 OIL LINE
12 504340181 TURBOCHARGER
13 504266554 BANJO BOLT M12X1.5
