F1AE0481G*A007

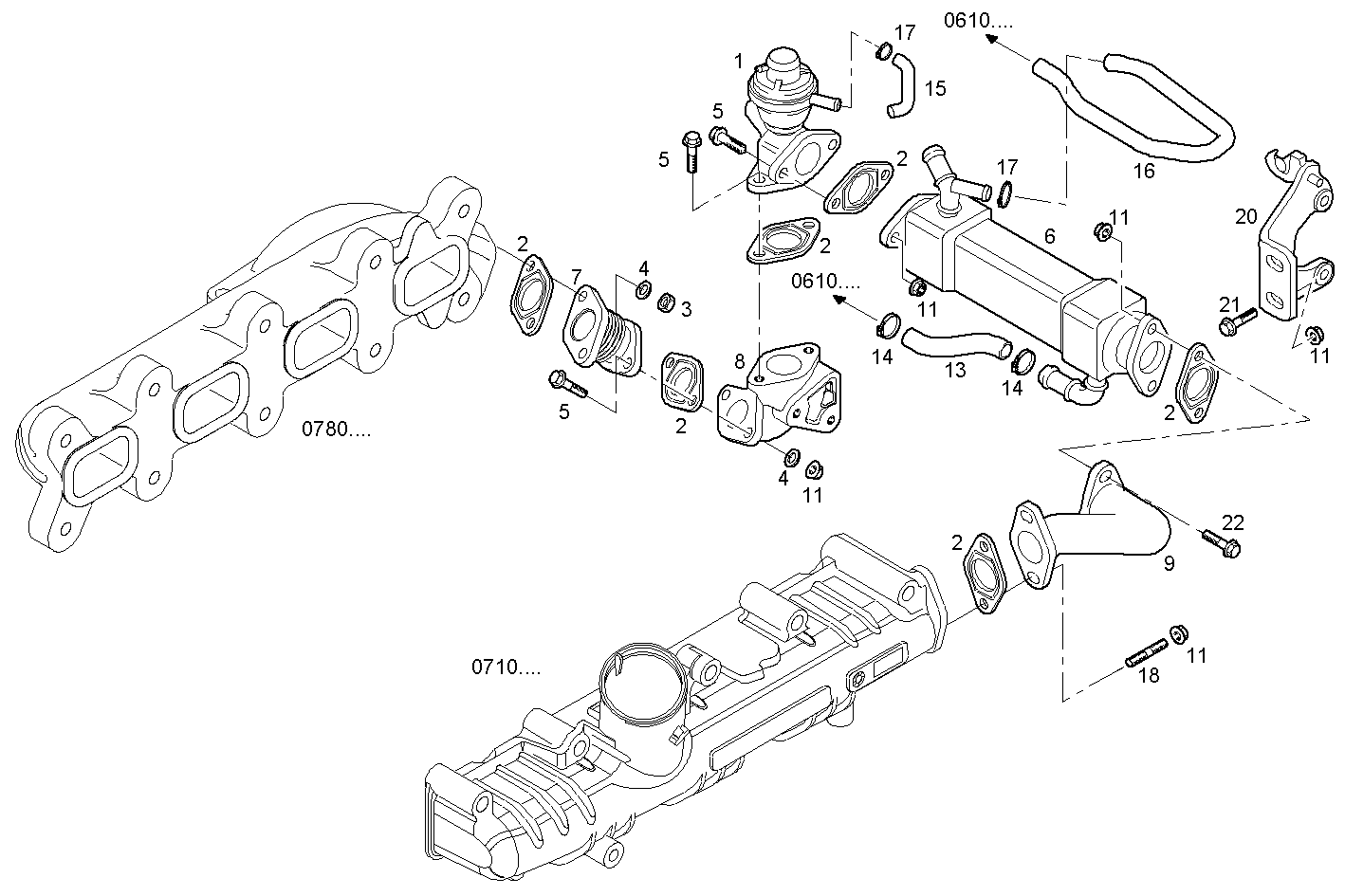

0750.003 EGR
| Item | Part number | Description |
|---|---|---|
| 1 | 504150396 | CONTROL VALVE EGR |
| 2 | 504167862 | EXH. MANIFOLD GKT |
| 3 | 500322677 | HEXAGON NUT M8 |
| 4 | 17094824 | WASHER Ø8,40X15 MM |
| 5 | 16707134 | SOCKET-HEAD SCREW M8X20 MM |
| 6 | 504158592 | HEAT EXCHANGER |
| 7 | 504155827 | FLANGE |
| 8 | 504029420 | INTAKE ELBOW |
| 9 | 504082271 | EXHAUST PIPE |
| 11 | 17044721 | HEXAGON NUT M8X1,25 |
| 13 | 504053807 | RUBBER SLEEVE |
| 14 | 18088392 | CLIP Ø16/25 MM |
| 15 | 504178358 | RUBBER SLEEVE |
| 16 | 504178359 | RUBBER SLEEVE |
| 17 | 18088192 | CLIP m10-16 |
| 18 | 16729324 | STUD M8X12X20 MM |
| 20 | 504084275 | RETAINER |
| 21 | 16673735 | HEXAGON BOLT M8X25 MM |
| 22 | 16586324 | HEXAGON BOLT M8X1,25X20 MM |
