F1AE0481L*A001

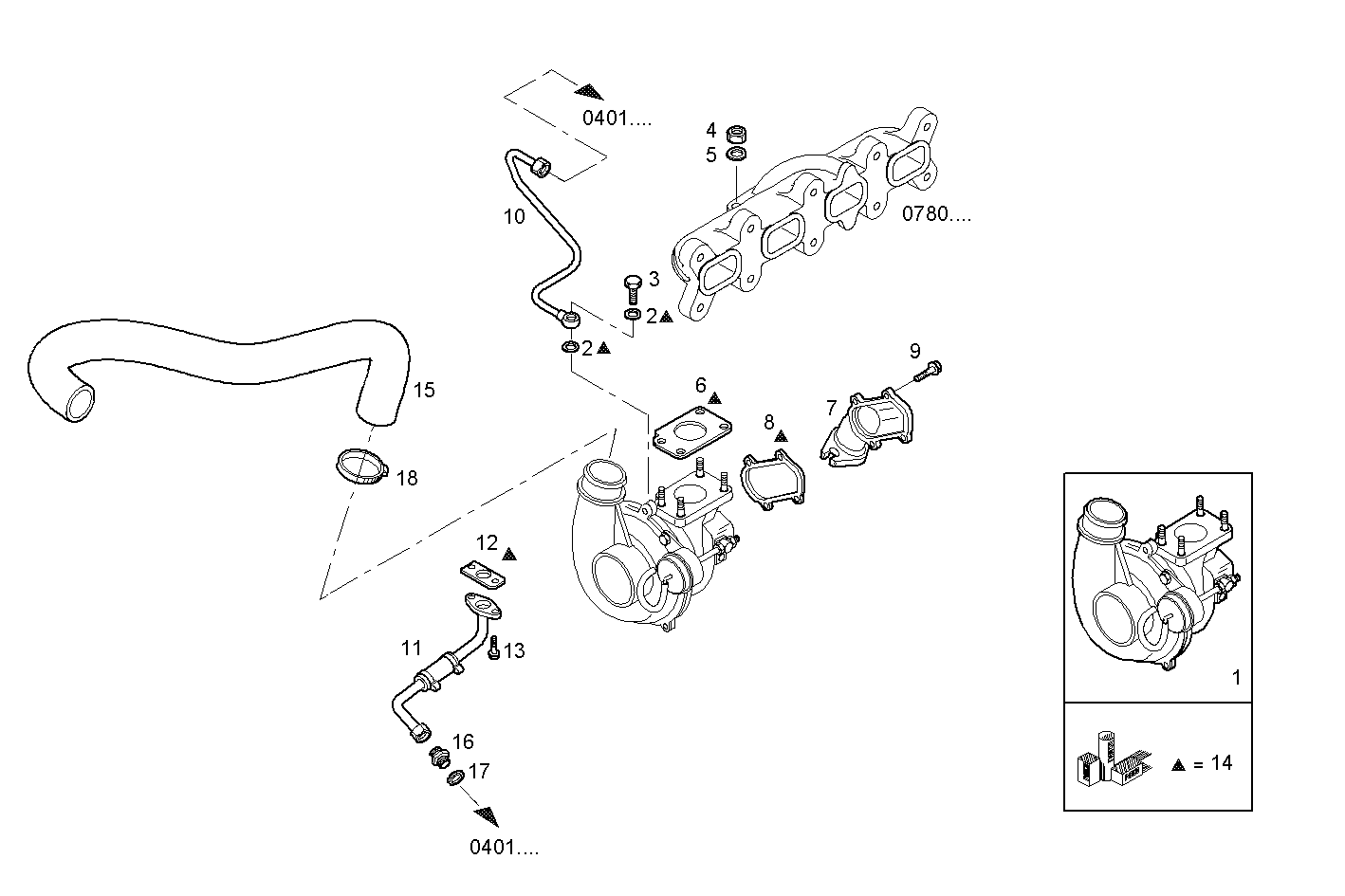

2400.282 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 504154739 | TURBOCHARGER |
| 2 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 3 | 504081281 | SCREW CONNECTOR M12X1,5 |
| 4 | 500322677 | HEXAGON NUT M8 |
| 5 | 17094914 | WASHER 8x16 |
| 6 | 500378462 | EXH. MANIFOLD GKT |
| 7 | 504076692 | AIR PIPE/DUCT |
| 8 | 98484659 | FLAT ENGINE GASKET |
| 9 | 16673735 | HEXAGON BOLT M8X25 MM |
| 10 | 504044738 | OIL LINE |
| 11 | 504106695 | OIL LINE |
| 12 | 500370706 | FLAT ENGINE GASKET |
| 13 | 16585825 | HEXAGON BOLT M6X20 MM |
| 14 | 2992533 | KIT-SEAL.GASKETS |
| 15 | 504112198 | RUBBER SLEEVE |
| 16 | 504102023 | SCREW CONNECTOR |
| 17 | 11270460 | GASKET Ø17X21X1,5 MM |
| 18 | 504017114 | CLIP |
