F1CE0441A*A003

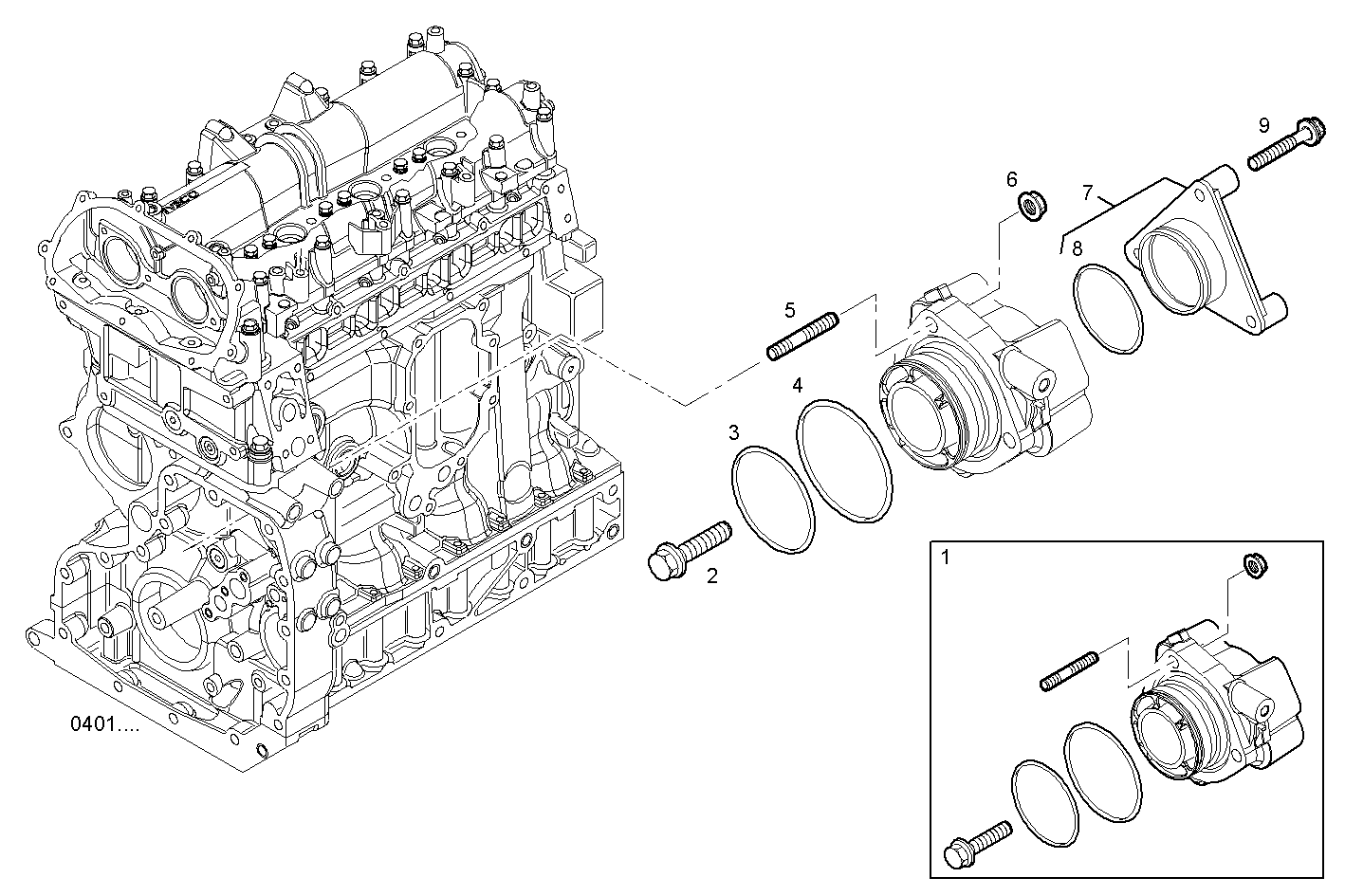

1400.019 INJECTION
| Item | Part number | Description |
|---|---|---|
| 1 | 504120126 | SUPPORT |
| 2 | 500347046 | HEXAGON BOLT M12X1,25 |
| 3 | 17284781 | O-RING 2,62x63,17 |
| 4 | 17290481 | O-RING 3,53x69,44 [UP TO # 328594] |
| 5 | 16746824 | STUD M8X30 MM (8.8) |
| 6 | 17044725 | HEXAGON NUT M8 |
| 7 | 504142694 | COVER |
| 8 | 17283581 | O-RING Ø44,12 MM SP=2,62 MM |
| 9 | 16287324 | HEXAGON BOLT M8X30 |
