F1CE0481B*A001

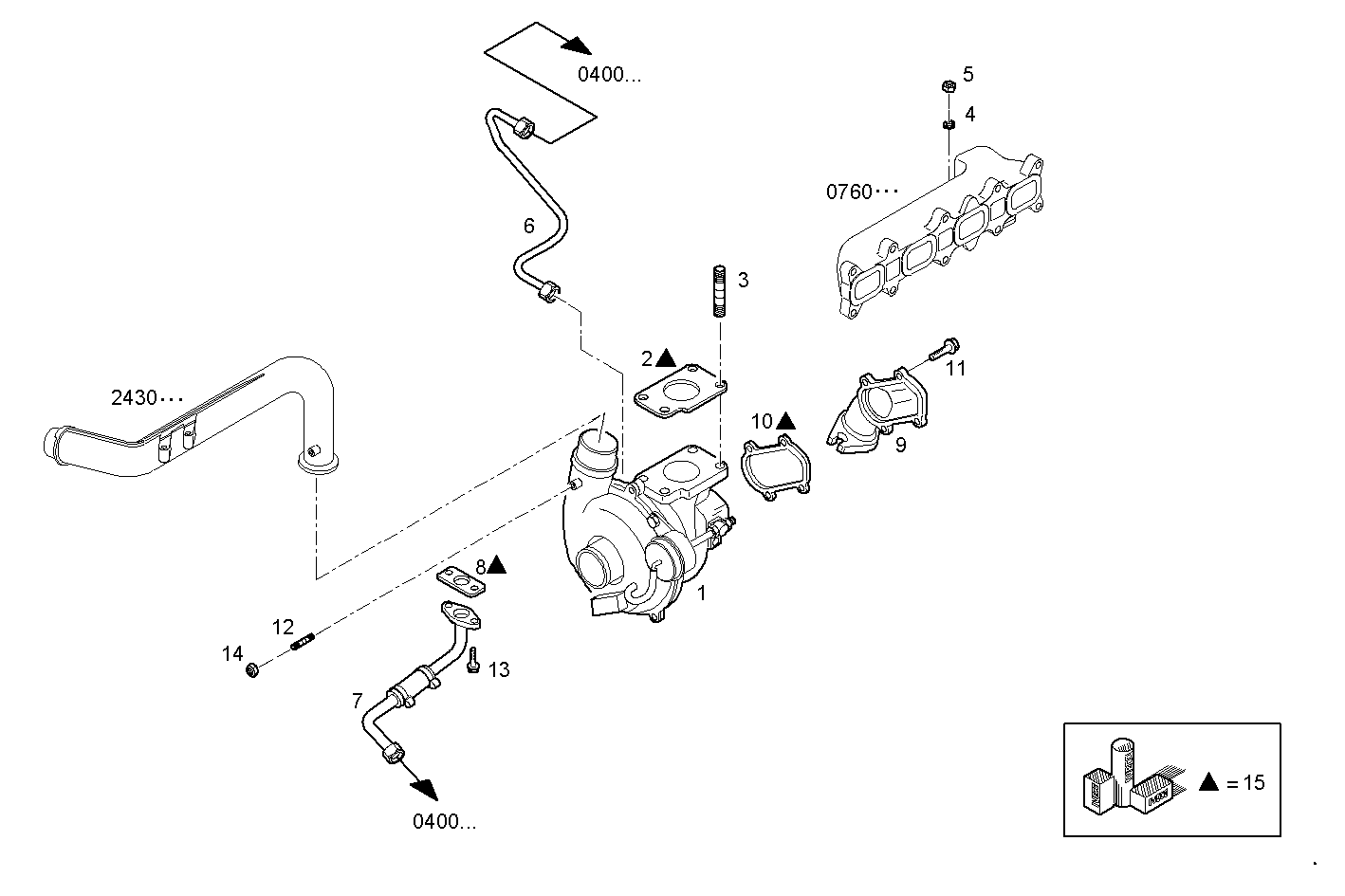

2400.253 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 504092197 | TURBOCHARGER |
| 2 | 4834948 | EXH. MANIFOLD GKT |
| 3 | 16729424 | STUD M8X1,25X25 |
| 4 | 17094914 | WASHER 8x16 |
| 5 | 500322677 | HEXAGON NUT M8 |
| 6 | 504107712 | OIL LINE |
| 7 | 504085335 | OIL LINE |
| 8 | 500370706 | FLAT ENGINE GASKET |
| 9 | 504131857 | AIR PIPE/DUCT |
| 10 | 98484659 | FLAT ENGINE GASKET |
| 11 | 16673735 | HEXAGON BOLT M8X25 MM |
| 12 | 16744821 | STUD |
| 13 | 16585825 | HEXAGON BOLT M6X20 MM |
| 14 | 17044625 | HEXAGON NUT M6 |
| 15 | 2995567 | KIT-SEAL.GASKETS |
