F1CE0481B*A001

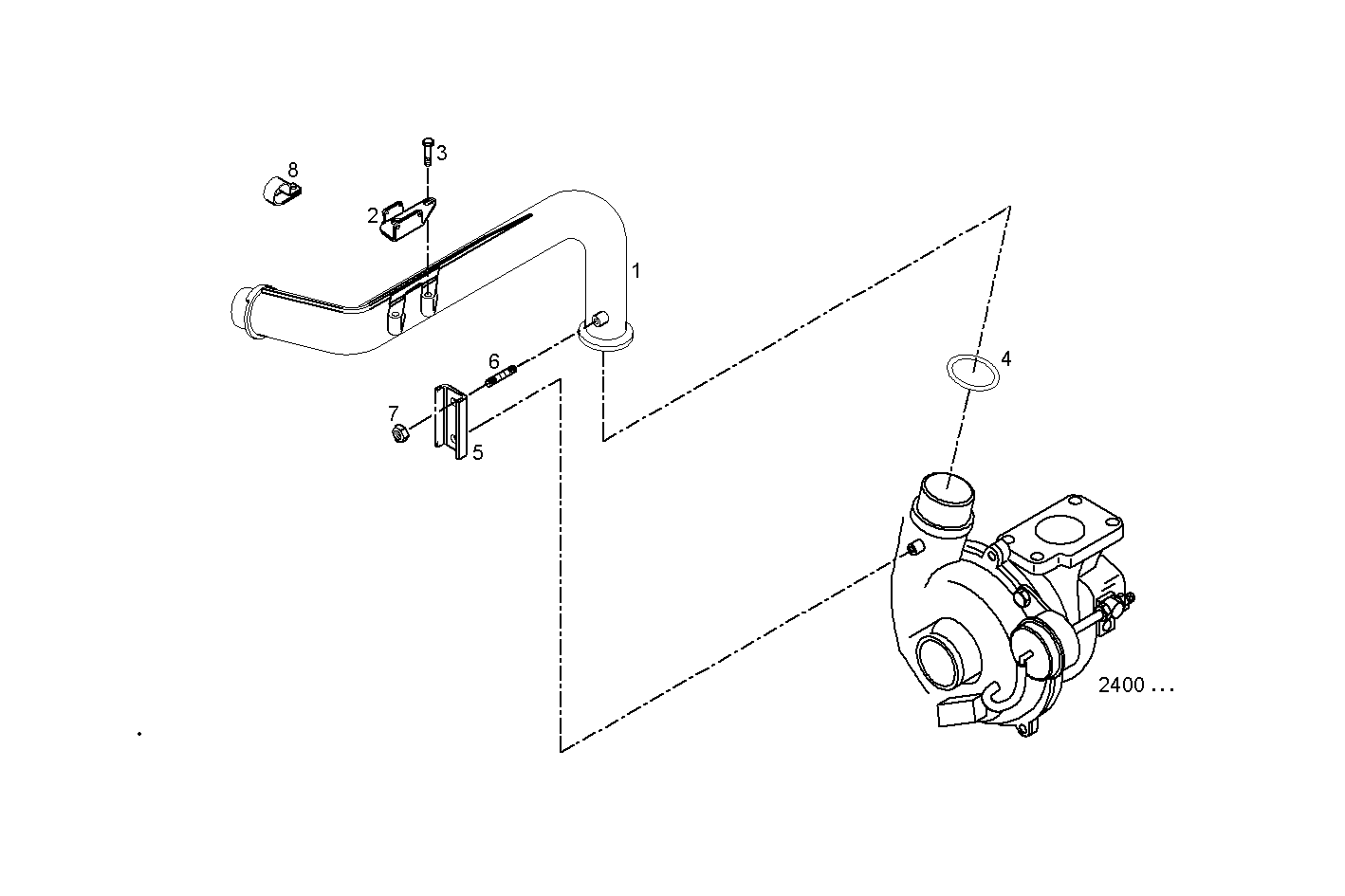

2430.034 EXIT AIR PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 504091121 | AIR PIPE/DUCT |
| 2 | 504087305 | FASTENING BRACKET |
| 3 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 4 | 14471181 | O-RING Ø46,99x5,33 MM |
| 5 | 504120583 | FASTENING BRACKET |
| 6 | 504104321 | STUD [UP TO # 207576] |
| 7 | 17044625 | HEXAGON NUT M6 |
| 8 | 17315290 | LOCK/YOKE |
| 9 | 18137825 | HEXAGON BOLT M6X16 |
