F1CE0481L*A003

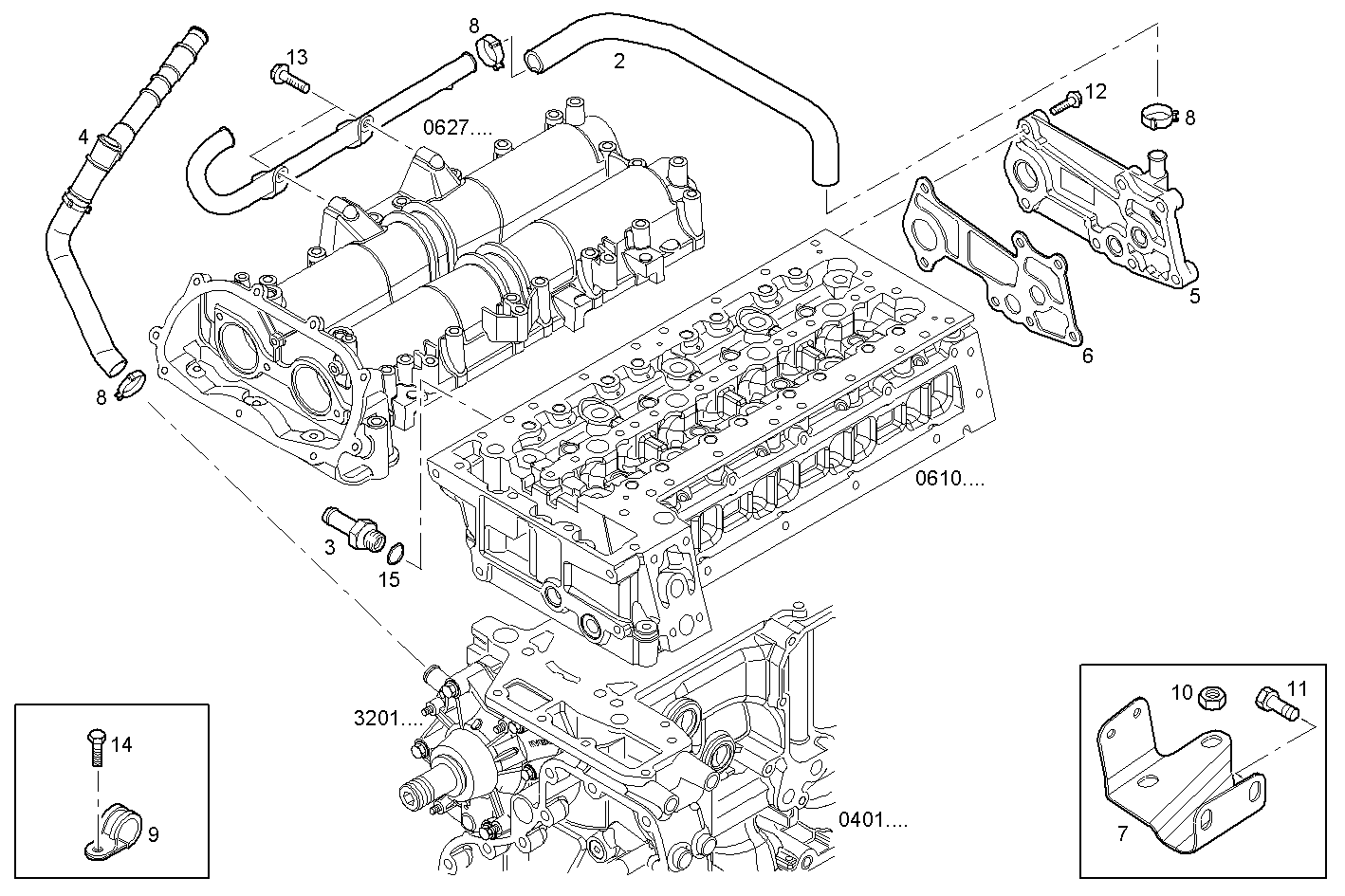

3240.210 DELIV. HEATING PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 504288001 | HEATING TUBE |
| 2 | 504198829 | RUBBER SLEEVE |
| 3 | 504158477 | CONNECTION PIPE [FROM # 361301] |
| 4 | 504136998 | HEATING TUBE |
| 5 | 504107225 | COVER |
| 6 | 504090818 | FLAT ENGINE GASKET |
| 7 | 504087305 | FASTENING BRACKET |
| 8 | 18186470 | CLIP |
| 9 | 17315290 | LOCK/YOKE |
| 10 | 17044725 | HEXAGON NUT M8 |
| 11 | 16600224 | HEXAGON BOLT M8X1,25X18 MM |
| 12 | 16586625 | HEXAGON BOLT M8X35 MM |
| 13 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 14 | 18137825 | HEXAGON BOLT M6X16 |
| 15 | 10260160 | SEAL GASKET Ø10X14 MM SP=1 MM |
