F1CE0486A*A001

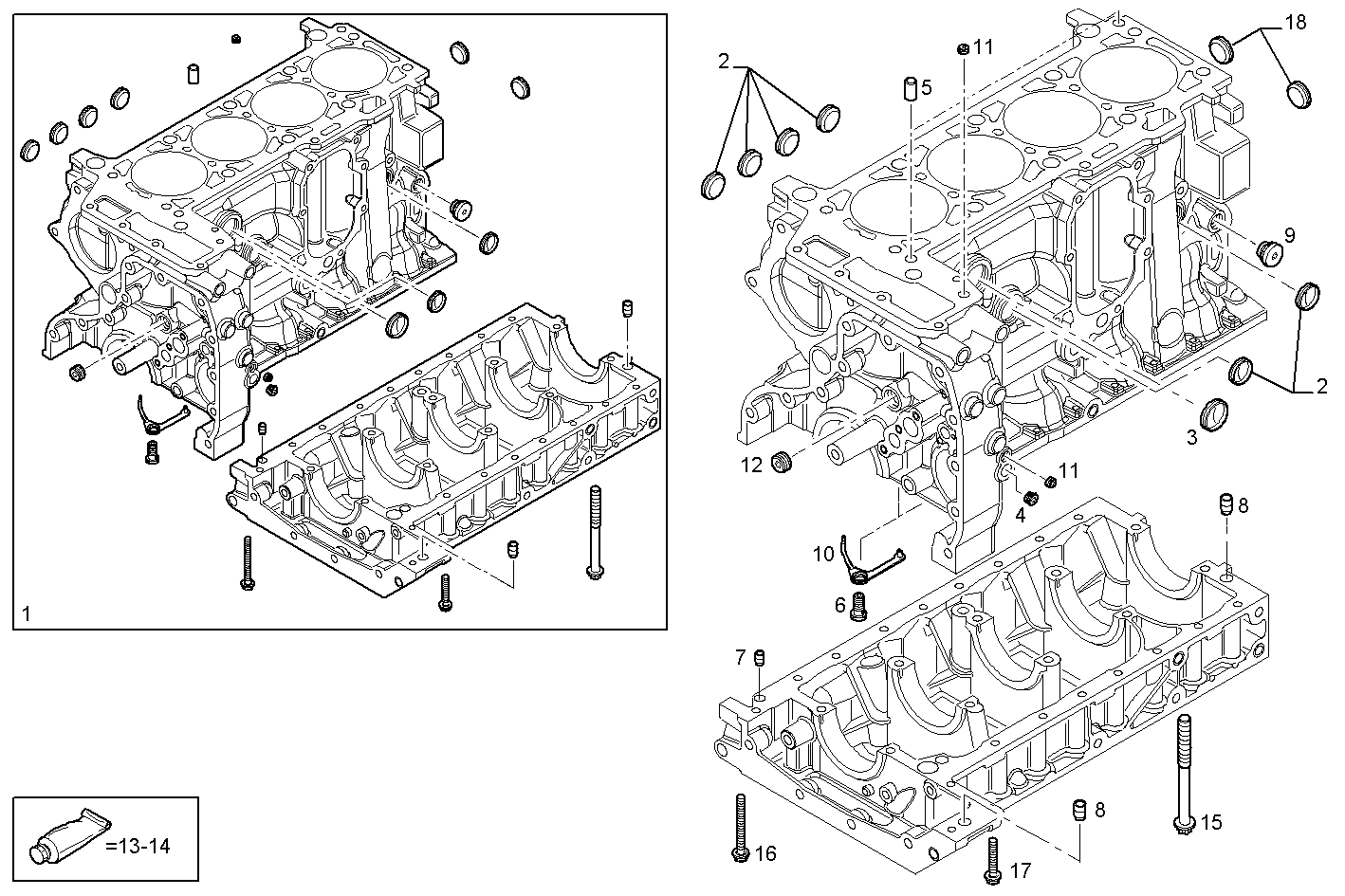

0400.217 CRANKCASE
| Item |
Part number |
Description |
|
1 |
504213171 |
CRANKCASE |
|
2 |
16988601 |
LOCK PLUG Ø28 MM |
|
3 |
16988801 |
LOCK PLUG Ø32 MM |
|
4 |
16997311 |
PLUG M14X1,5 |
|
5 |
99445814 |
DOWEL PIN |
|
6 |
500370623 |
SCREW CONNECTOR M10X1 |
|
7 |
504014642 |
DOWEL PIN |
|
8 |
504014645 |
DOWEL PIN |
|
9 |
504016052 |
LOCK PLUG M14X1,5 |
|
10 |
504018713 |
OIL NOZZLE ASSY |
|
11 |
504051236 |
THREADED PLUG DIAM=1/8" |
|
12 |
504051238 |
THREADED PLUG DIAM=3/8" |
|
13 |
2992504 |
ADHESIVE/STICKER LOCTITE |
|
14 |
2992695 |
ADHESIVE/STICKER LOCTITE |
|
15 |
504015231 |
SCREW M12X1.5 |
|
16 |
504015885 |
SCREW M8X1.25X80 MM |
|
17 |
504052085 |
SCREW M8X1.25 |
|
18 |
16988501 |
LOCK PLUG Ø25 MM |
