F1CE0486A*A001

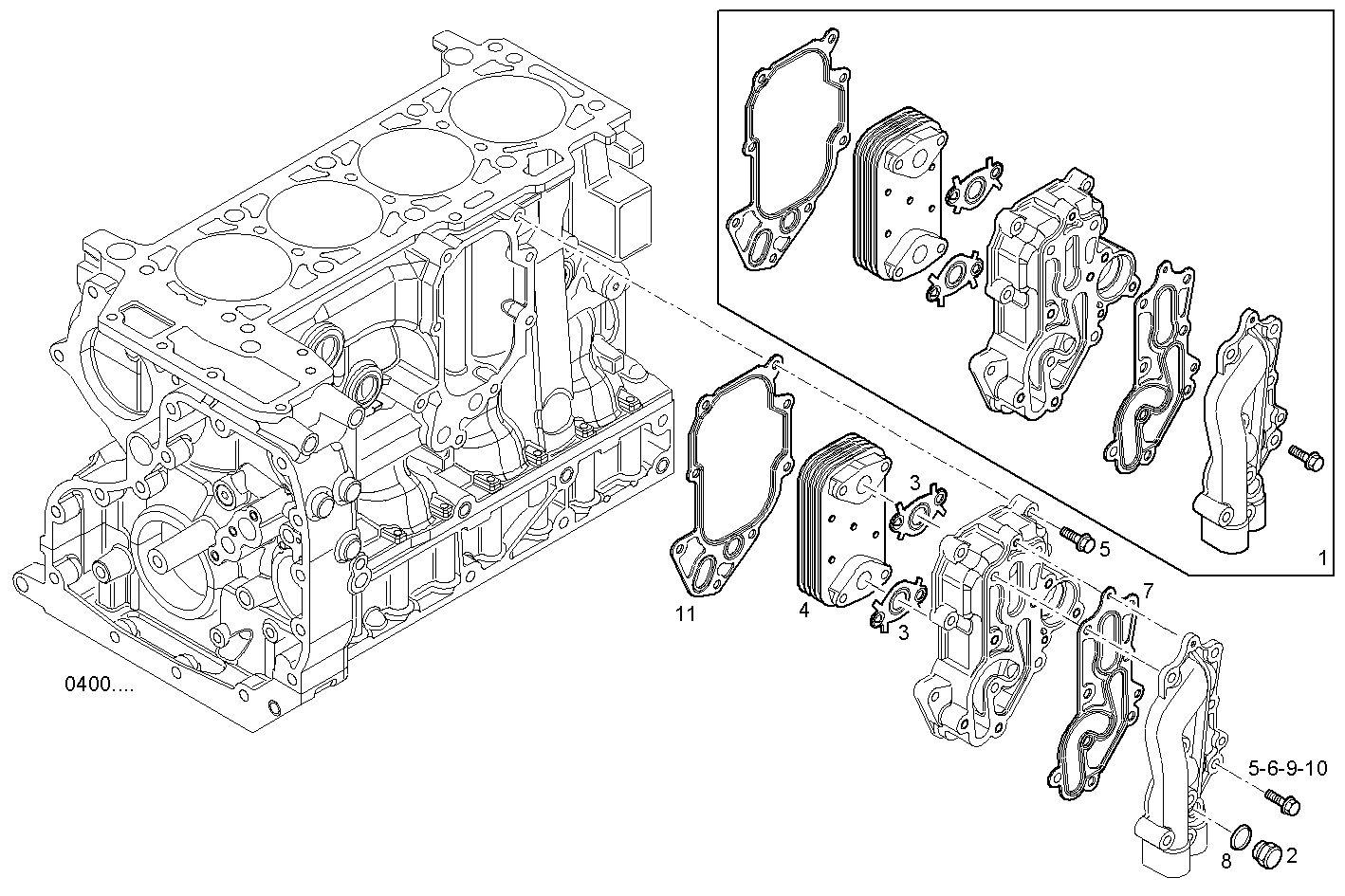

3100.162 HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 504160865 | HEAT EXCHANGER ASSY |
| 2 | 16992315 | THREADED PLUG M14X1,5 |
| 3 | 504077557 | FLAT ENGINE GASKET |
| 4 | 504078695 | OIL COOLER |
| 5 | 16673835 | HEXAGON BOLT M8X30 MM |
| 6 | 16586725 | HEXAGON BOLT M8X1.25X40 MM |
| 7 | 504092368 | FLAT ENGINE GASKET |
| 8 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 9 | 16585825 | HEXAGON BOLT M6X20 MM |
| 10 | 16592224 | HEXAGON BOLT M8X55 MM |
| 11 | 504089123 | FLAT ENGINE GASKET |
