F1CE3481F*D001

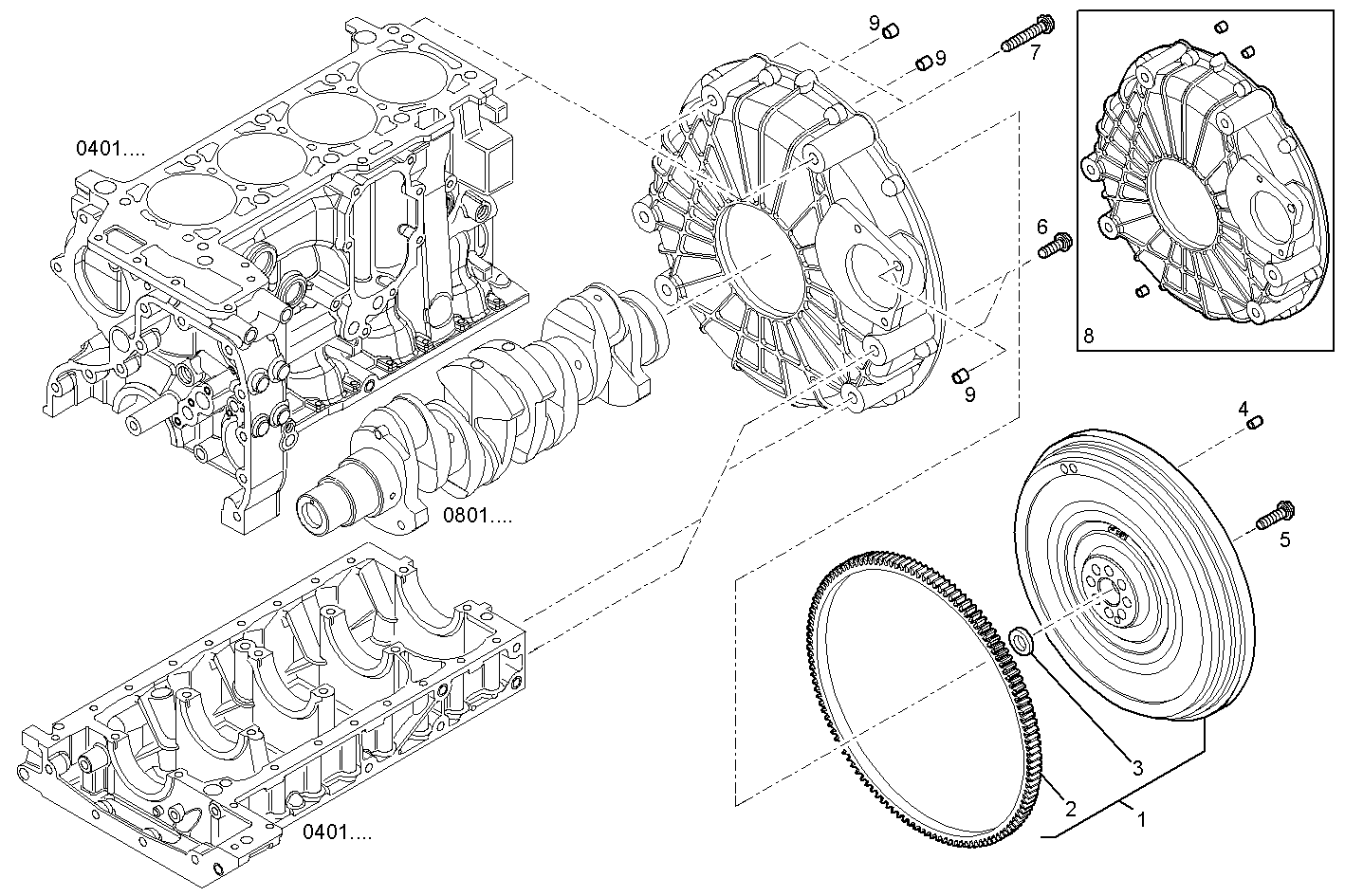

0830.318 ENGINE FLYWHEEL
| Item | Part number | Description |
|---|---|---|
| 1 | 504371327 | FLYWHEEL ASSY |
| 2 | 504371329 | RING GEAR |
| 3 | 98426210 | ENGINE BEARINGS Ø15X35 Sp=14 MM |
| 4 | 504382696 | DOWEL PIN |
| 5 | 504341500 | HEXAGON BOLT M12X1,25X42,5MM |
| 6 | 16289834 | LOCKING SCREW M12X1,25X30MM |
| 7 | 16290934 | HEXAGON BOLT |
| 8 | 504371402 | FLYWHEEL HOUSING |
| 9 | 4708557 | DOWEL PIN |
