F1CE3481F*D003

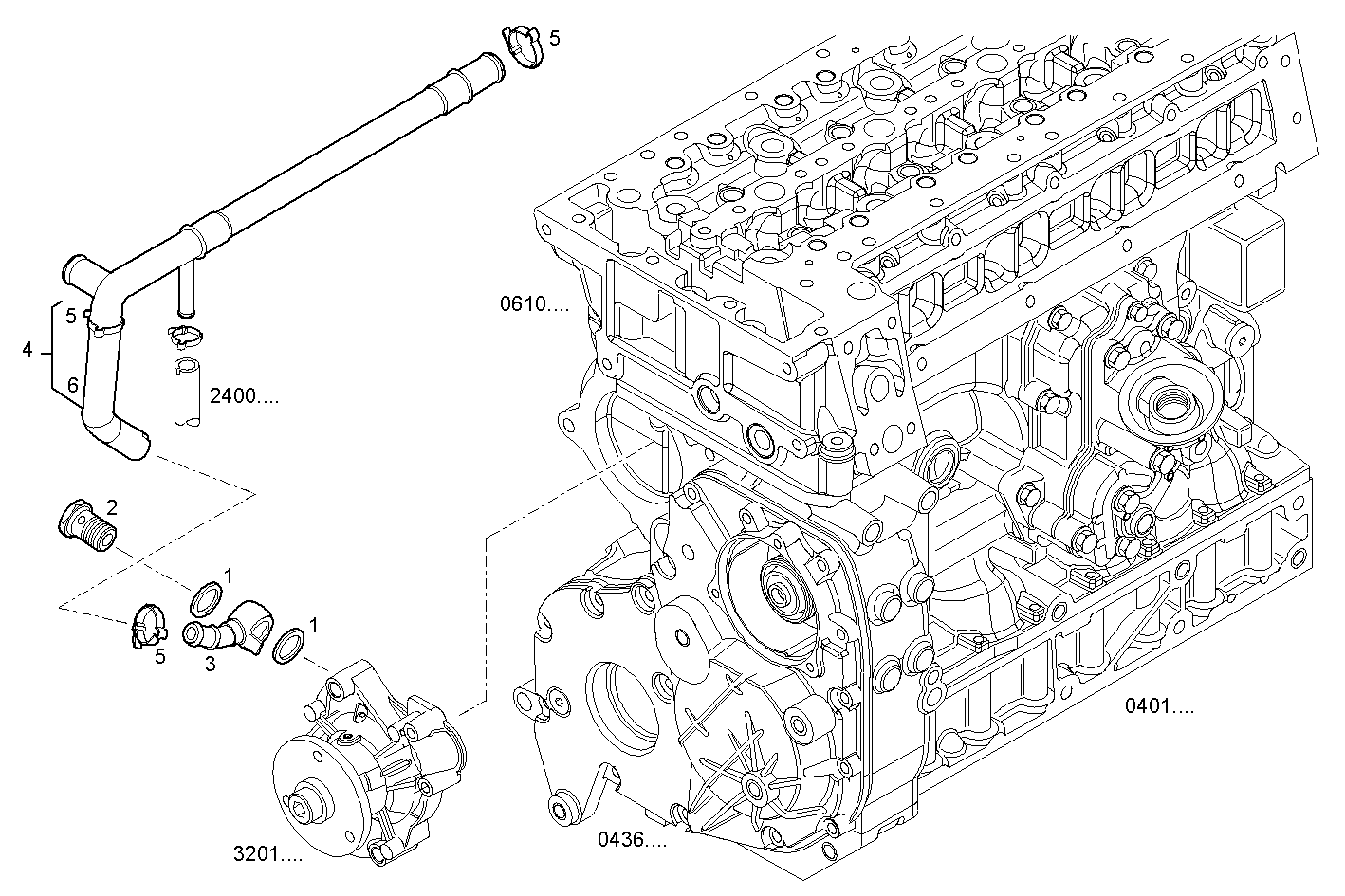

3240.028 DELIV. HEATING PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 16570560 | SEAL GASKET DIA 20x24 |
| 2 | 504137899 | SCREW CONNECTOR M20X1,5 |
| 3 | 504340615 | BANJO COUPLING |
| 4 | 504371382 | WATER PIPE ASSY |
| 5 | 13127470 | CLIP |
| 6 | 504371386 | RUBBER SLEEVE |
