F2BE0642A*A002

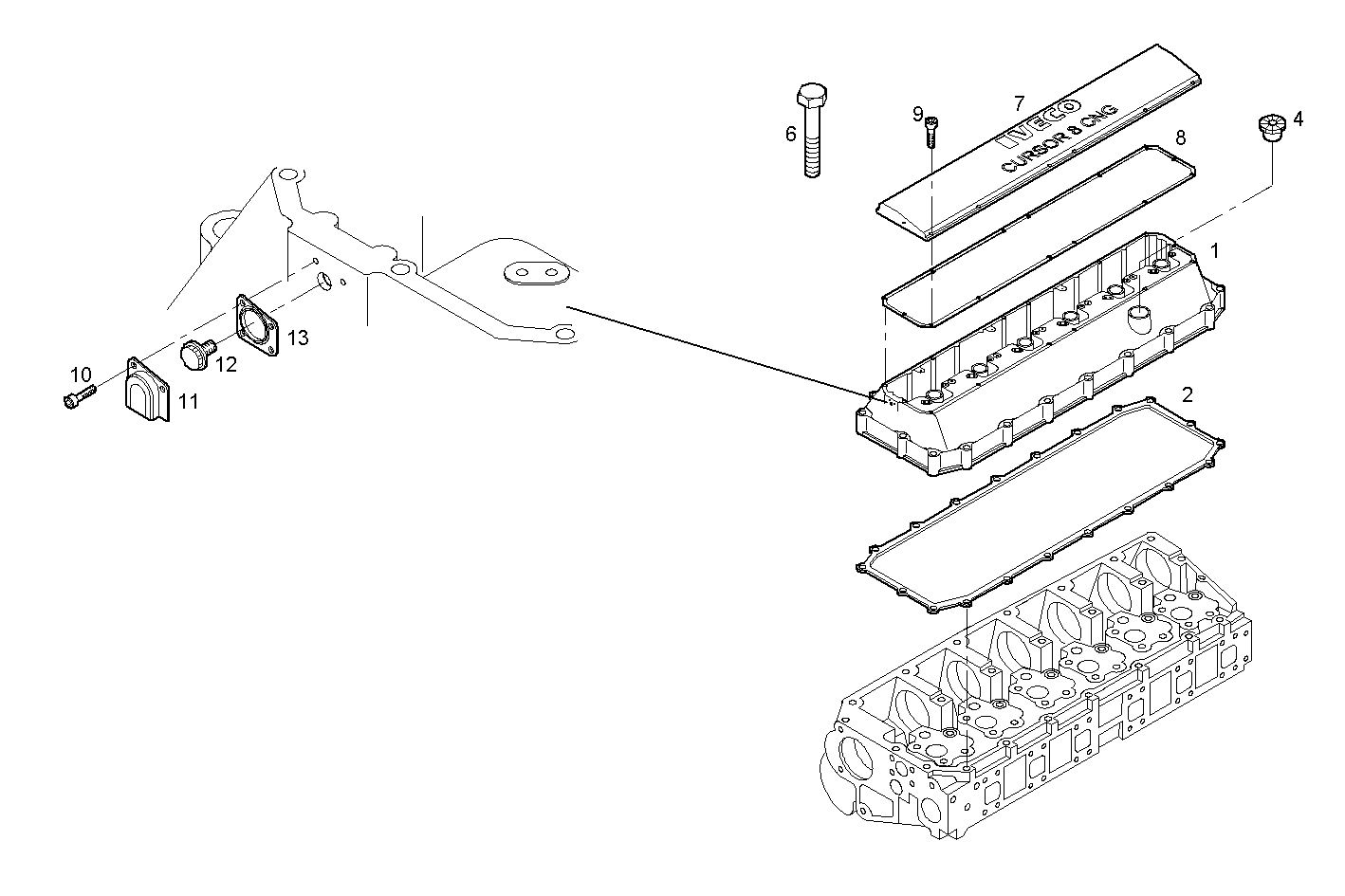

0630.035 CYL. HEAD COVERS
| Item | Part number | Description |
|---|---|---|
| 1 | 504078831 | CYL. HEAD COVER |
| 2 | 504055305 | HEAD COVER GASKET |
| 4 | 98442027 | OIL FILLER PLUG ASSY |
| 6 | 16592125 | HEXAGON BOLT M6X60 MM |
| 7 | 504080915 | CYL. HEAD COVER |
| 8 | 504028047 | HEAD COVER GASKET |
| 9 | 16689224 | SOCKET-HEAD SCREW M6X20 MM |
| 10 | 16687724 | CYLIND-HEAD SCREW |
| 11 | 504089741 | COVER |
| 12 | 504089750 | BREATHER VALVE |
| 13 | 504089740 | GASKET |
