F2BE0642A*A003

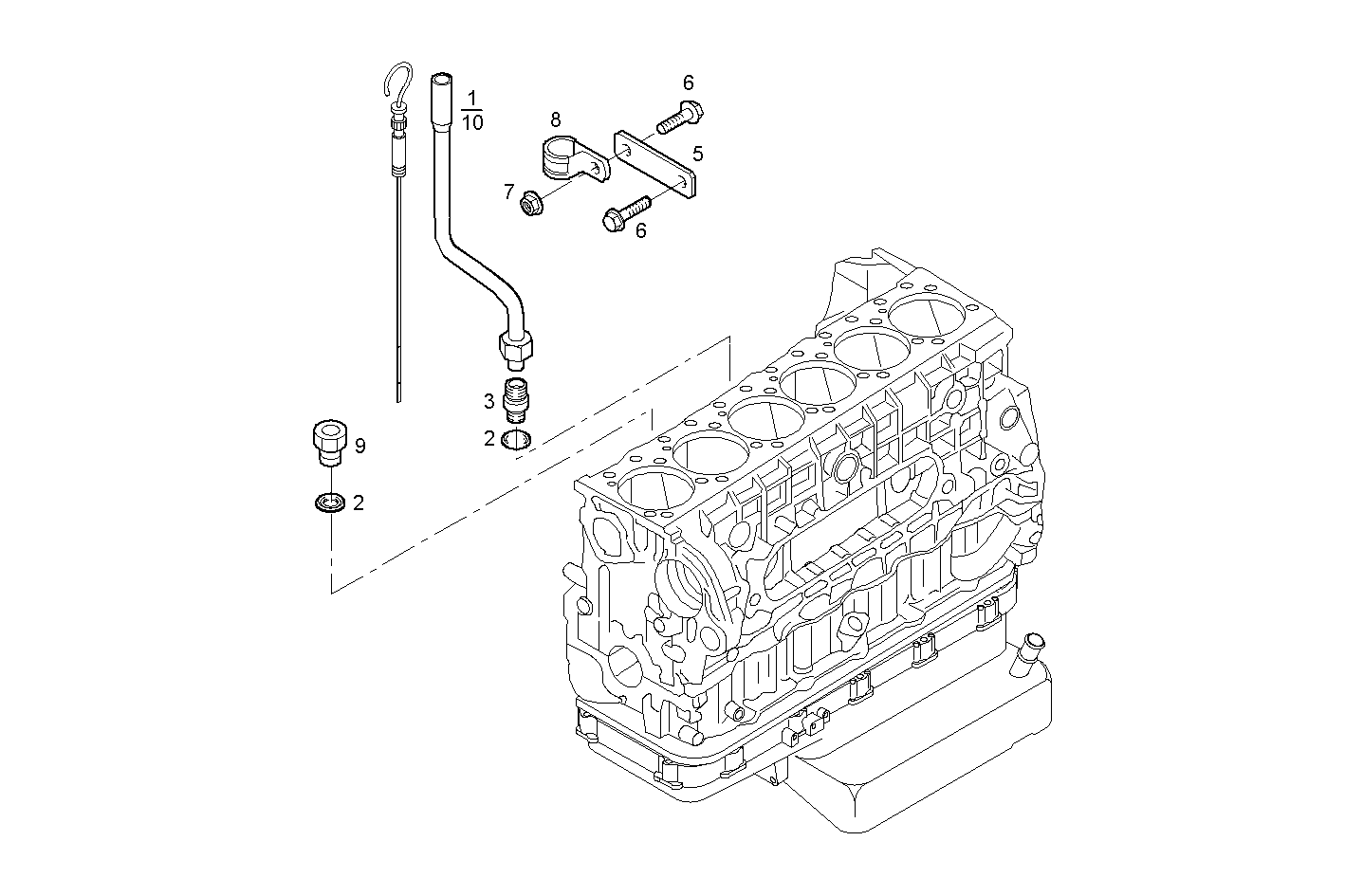

2712.002 OIL DIPSTICK PIPE [FROM # 63871] [FROM # 63871]
| Item | Part number | Description |
|---|---|---|
| 1 | 504012076 | OIL LEVEL TUBE [UP TO # 72654] |
| 2 | 99489020 | SEAL GASKET Ø18X26 MM SP=1,5 MM |
| 3 | 504023175 | THREADED UNION M18X1,5 - M24X1 |
| 5 | 504066745 | RETAINER |
| 6 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 7 | 17044725 | HEXAGON NUT M8 |
| 8 | 17316699 | PIPE CLIP Ø14 MM |
| 9 | 16992515 | THREADED PLUG M18X1,5 |
| 10 | 504117963 | OIL LEVEL TUBE [FROM # 72655] |
