F2BE0642B*A001

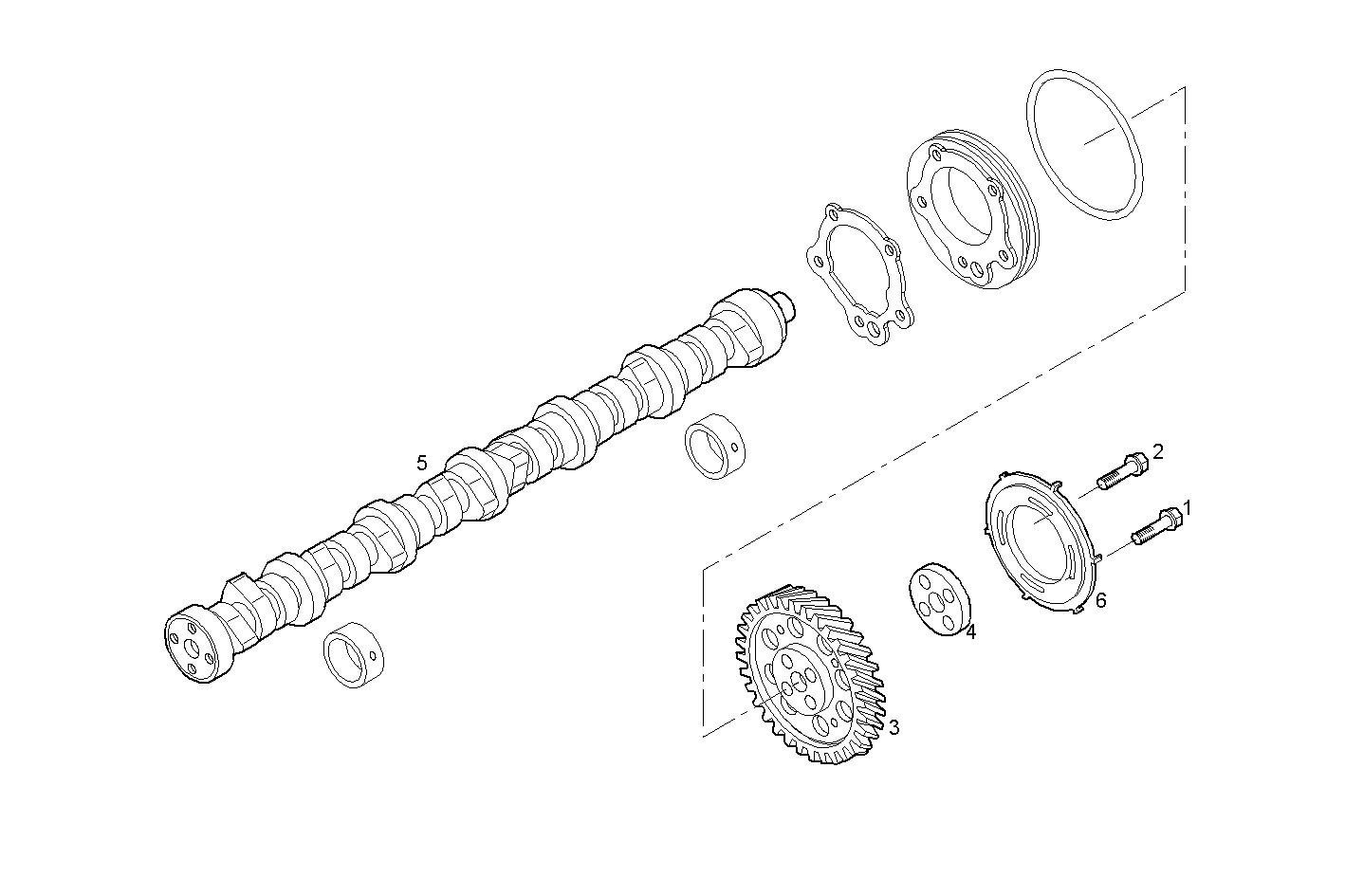

1250.002 TIMING PARTS
| Item | Part number | Description |
|---|---|---|
| 1 | 500359731 | HEXAGON BOLT M6X1X25 MM |
| 2 | 500356759 | HEXAGON BOLT M12X70 MM |
| 3 | 99442972 | GEAR |
| 4 | 99444780 | SPACER RING |
| 5 | 504037387 | CAMSHAFT |
| 6 | 500313023 | PLATE |
