F2BE0642B*A001

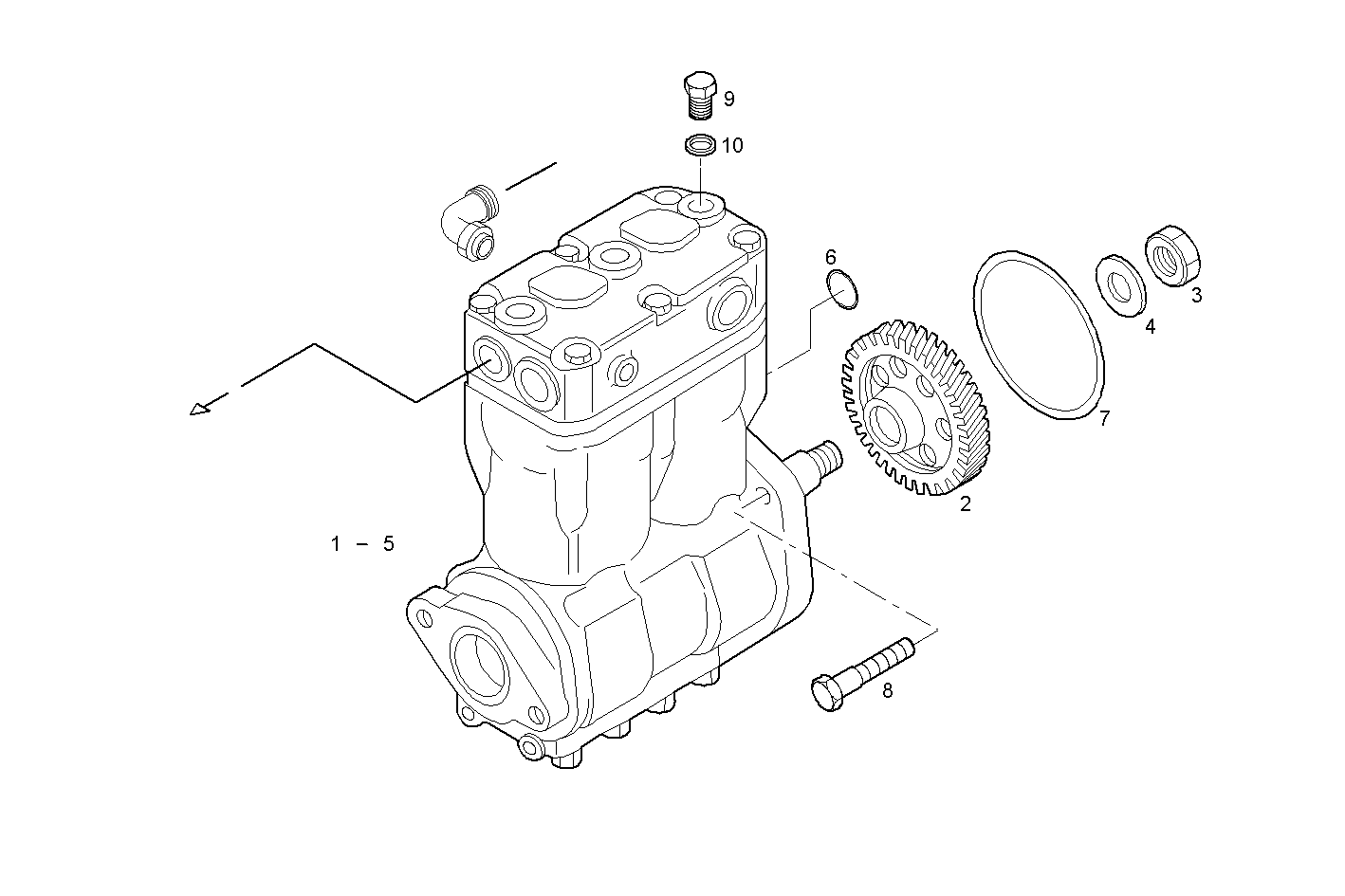

3801.001 AIR COMPRESSOR
| Item | Part number | Description |
|---|---|---|
| 1 | 504033988 | AIR COMPRESSOR |
| 2 | 99435001 | GEAR |
| 3 | 99471892 | HEXAGON NUT |
| 4 | 17095914 | WASHER |
| 5 | 504079460 | AIR COMPRESSOR |
| 6 | 17281381 | O-RING Ø9,19 MM [FROM TO # 62977] |
| 7 | 17292281 | O-RING Ø126,59 MM SP=3,53 MM |
| 8 | 16693924 | CYLIND-HEAD SCREW M12X35MM |
| 9 | 16993311 | THREADED PLUG M18X1,5 |
| 10 | 99489020 | SEAL GASKET Ø18X26 MM SP=1,5 MM |
