F2BE0642F*B007

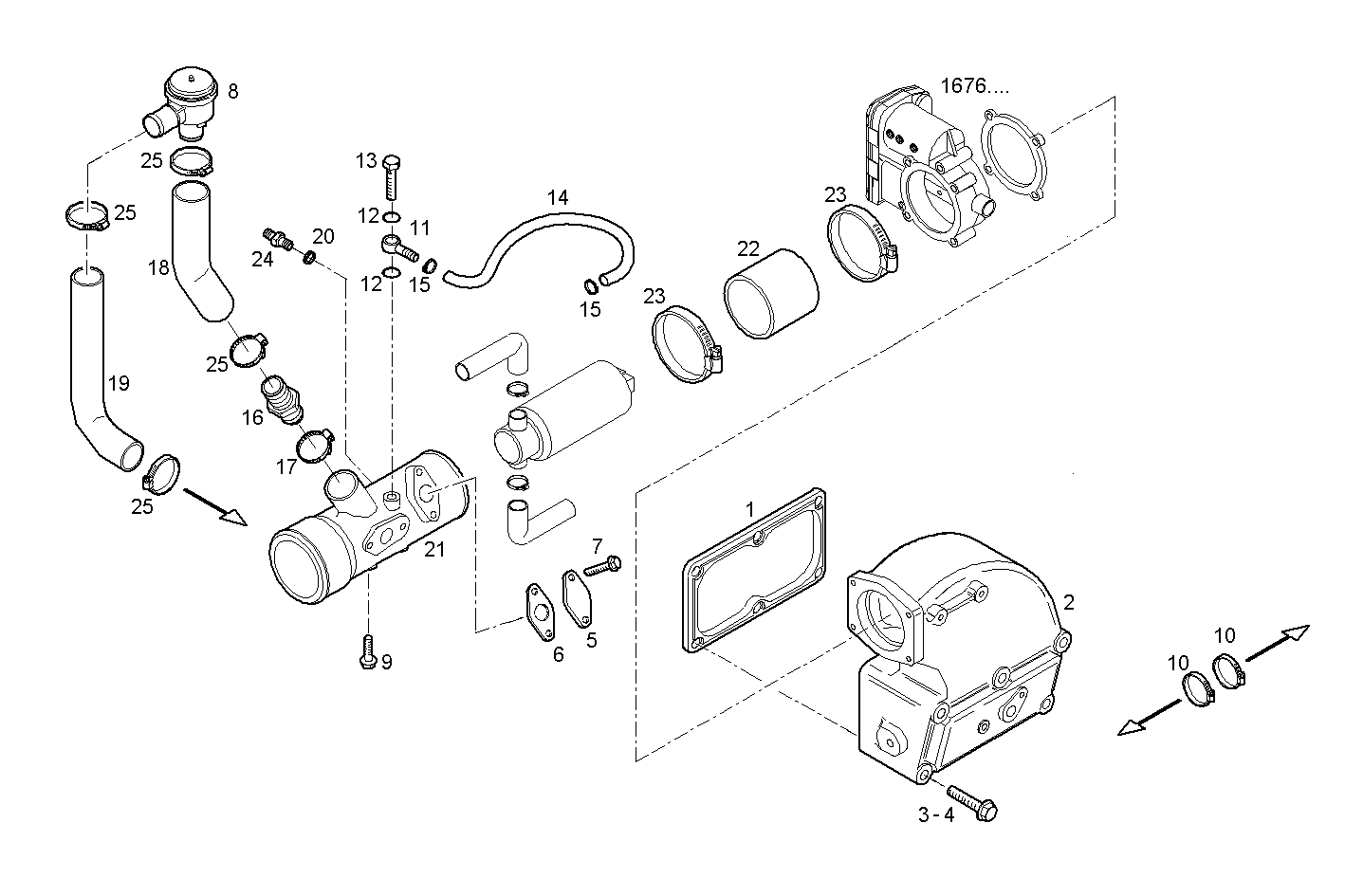

0710.019 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 504026624 | FLAT ENGINE GASKET |
| 2 | 504328655 | INTAKE ELBOW |
| 3 | 16593125 | HEXAGON BOLT M10X100 MM |
| 4 | 16599025 | SCREW M10X120 MM |
| 5 | 504330313 | FLANGE |
| 6 | 8008735 | GASKET |
| 7 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 8 | 8029990 | VALVE |
| 9 | 16673735 | HEXAGON BOLT M8X25 MM |
| 10 | 17765494 | CLIP dia. = 100/120 |
| 11 | 4740662 | BANJO COUPLING |
| 12 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
| 13 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 14 | 504076044 | RUBBER HOSE |
| 15 | 18087692 | CLIP Ø8/12 MM |
| 16 | 504070711 | THREADED UNION M28X1,5 |
| 17 | 16571960 | SEAL GASKET |
| 18 | 504095001 | HOSE |
| 19 | 504075337 | RUBBER HOSE |
| 20 | 98474303 | WASHER Ø8X14 MM SP=2,3 MM |
| 21 | 504101880 | INTAKE ELBOW |
| 22 | 504116141 | CONNECTOR SLEEVE |
| 23 | 17765192 | HOSE CLIP Ø70-90 MM |
| 24 | 504064367 | PIPE SOCKET |
| 25 | 18088594 | CLIP |
