F2BE0642F*B007

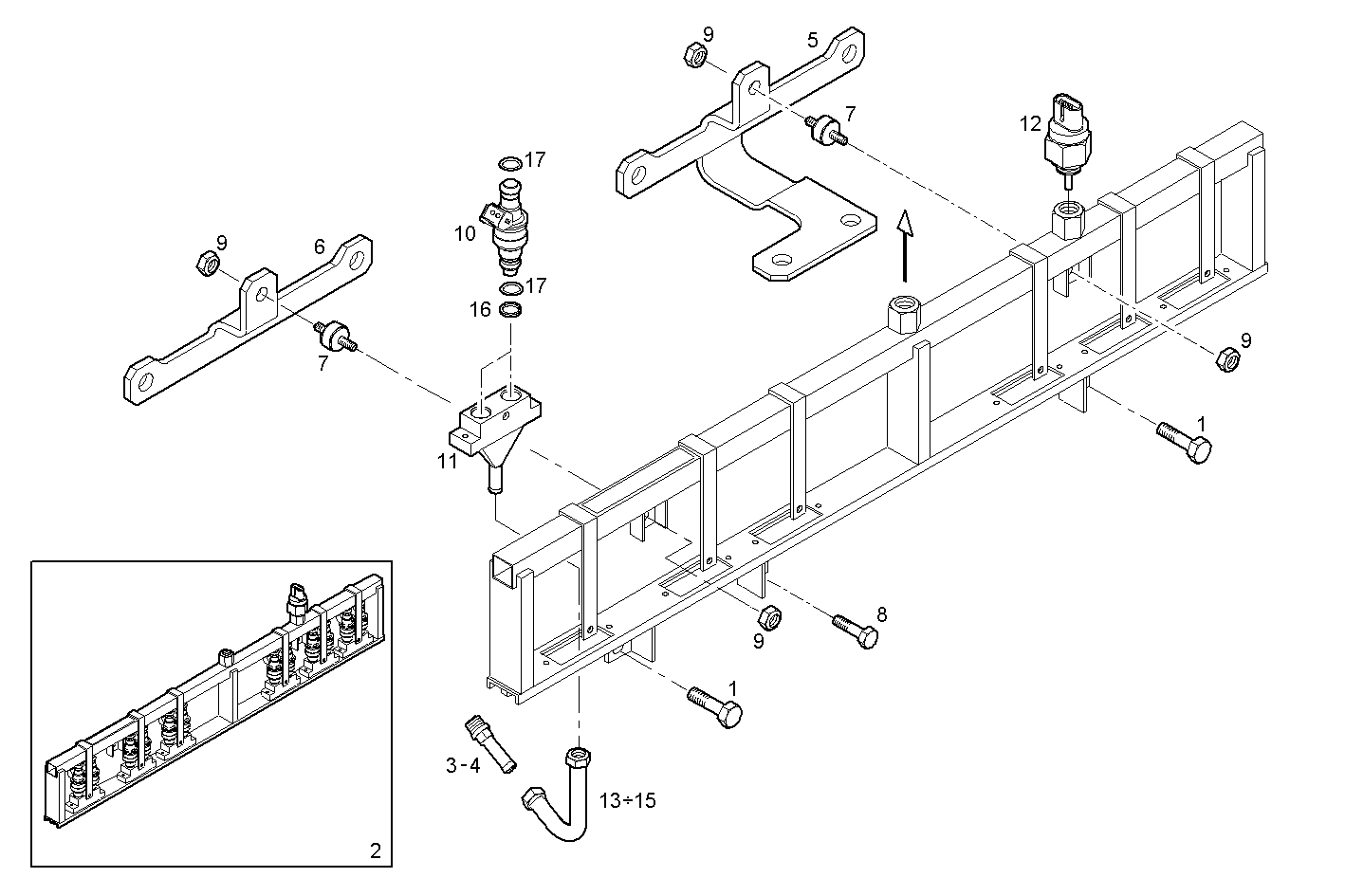

1670.002 GAS INJECTION
| Item | Part number | Description |
|---|---|---|
| 1 | 16675635 | HEXAGON BOLT |
| 2 | 504339360 | INJECTION LINE |
| 3 | 504326100 | SCREW CONNECTOR |
| 4 | 504326101 | SCREW CONNECTOR |
| 5 | 504342234 | SUPPORT |
| 6 | 504090549 | SUPPORT |
| 7 | 504090550 | RUBBER LUG |
| 8 | 16673535 | HEXAGON BOLT M8X16 MM |
| 9 | 17044625 | HEXAGON NUT M6 |
| 10 | 504293566 | GAS MOTOR ELECT.INJ. |
| 11 | 504120956 | CHOCK |
| 12 | 504119992 | SENSOR |
| 13 | 504113300 | FUEL LINE CYLINDER No.1-2-5 |
| 14 | 504113302 | FUEL LINE CYLINDER No.6 |
| 15 | 504113301 | FUEL LINE CYLINDER No.3-4 |
| 16 | 504234656 | SPACING BAR |
| 17 | 8025533 | O-RING |
