F2BE0642F*B007

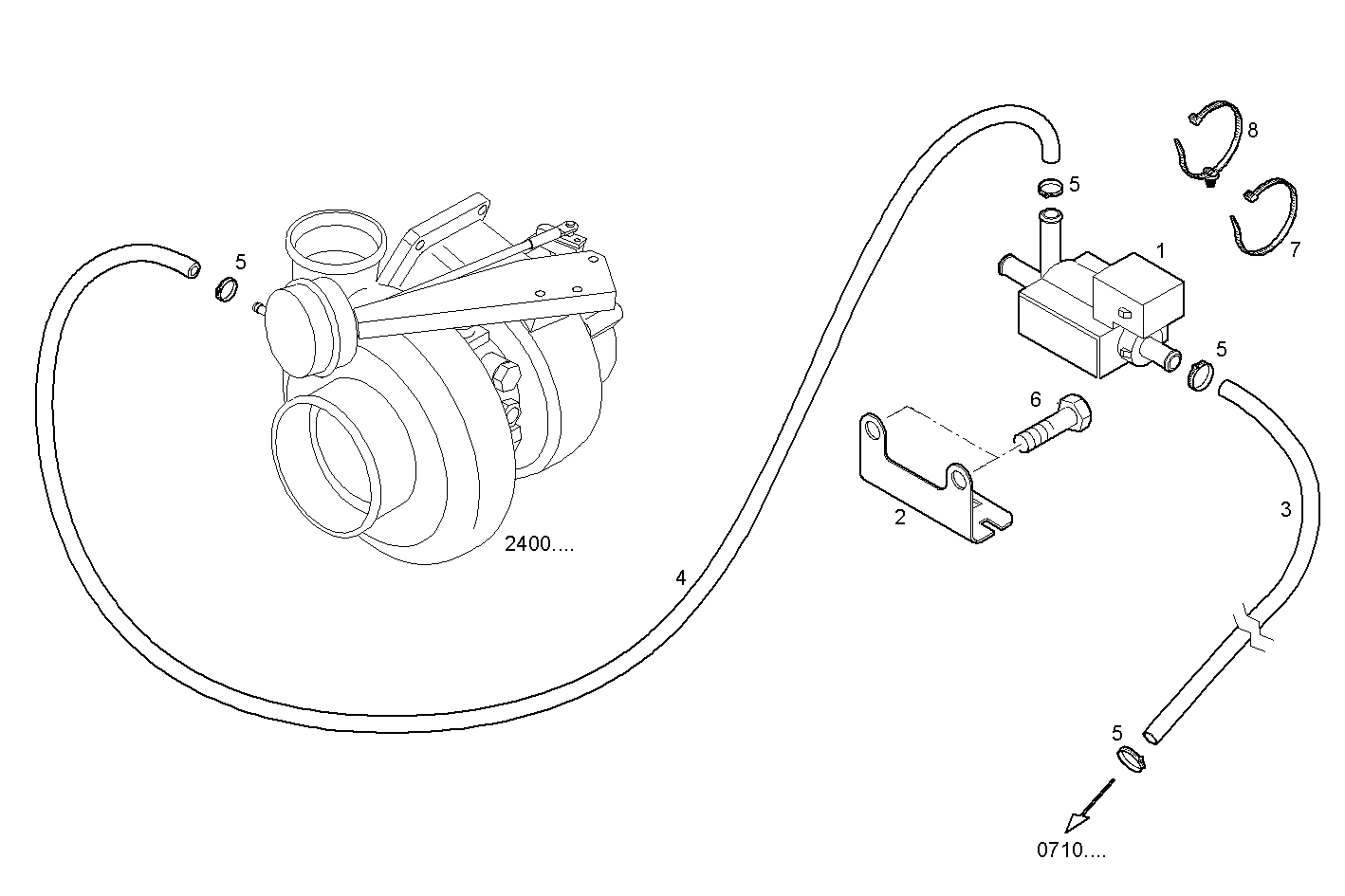

2406.009 CONTROL VALVE
| Item | Part number | Description |
|---|---|---|
| 1 | 504064372 | ELECTROVALVE |
| 2 | 504087881 | RETAINER |
| 3 | 504254717 | RUBBER HOSE |
| 4 | 504076095 | RUBBER HOSE |
| 5 | 18087594 | CLIP |
| 6 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 7 | 42099097 | CABLE STRAP |
| 8 | 504023286 | CABLE STRAP |
