F2BE0642F*B007

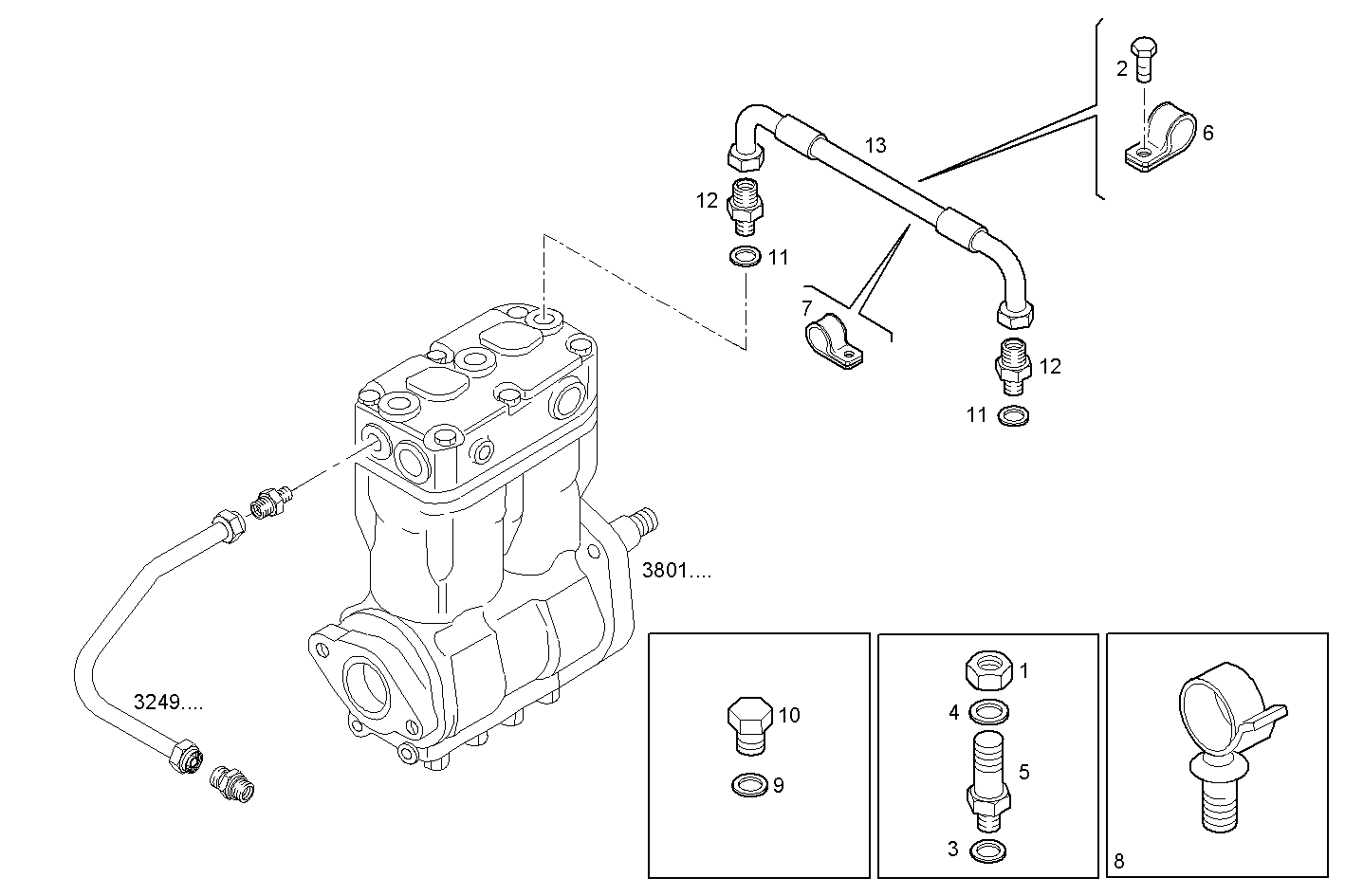

3250.006 COMPRESSOR EXIT PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 17044725 | HEXAGON NUT M8 |
| 2 | 18137825 | HEXAGON BOLT M6X16 |
| 3 | 17095024 | SPRING WASHER Ø10X18 MM |
| 4 | 17094924 | WASHER Ø8X16 MM |
| 5 | 504005577 | SPACING BAR |
| 6 | 17315290 | LOCK/YOKE |
| 7 | 10450590 | PIPE CLIP Ø18 MM |
| 8 | 500349848 | HITCH ASSY. |
| 9 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 10 | 16992415 | THREADED PLUG M16X1,5 |
| 11 | 99489020 | SEAL GASKET Ø18X26 MM SP=1,5 MM |
| 12 | 16500415 | PIPE SOCKET |
| 13 | 504167142 | WATER PIPE |
