F2BE0642F*B007

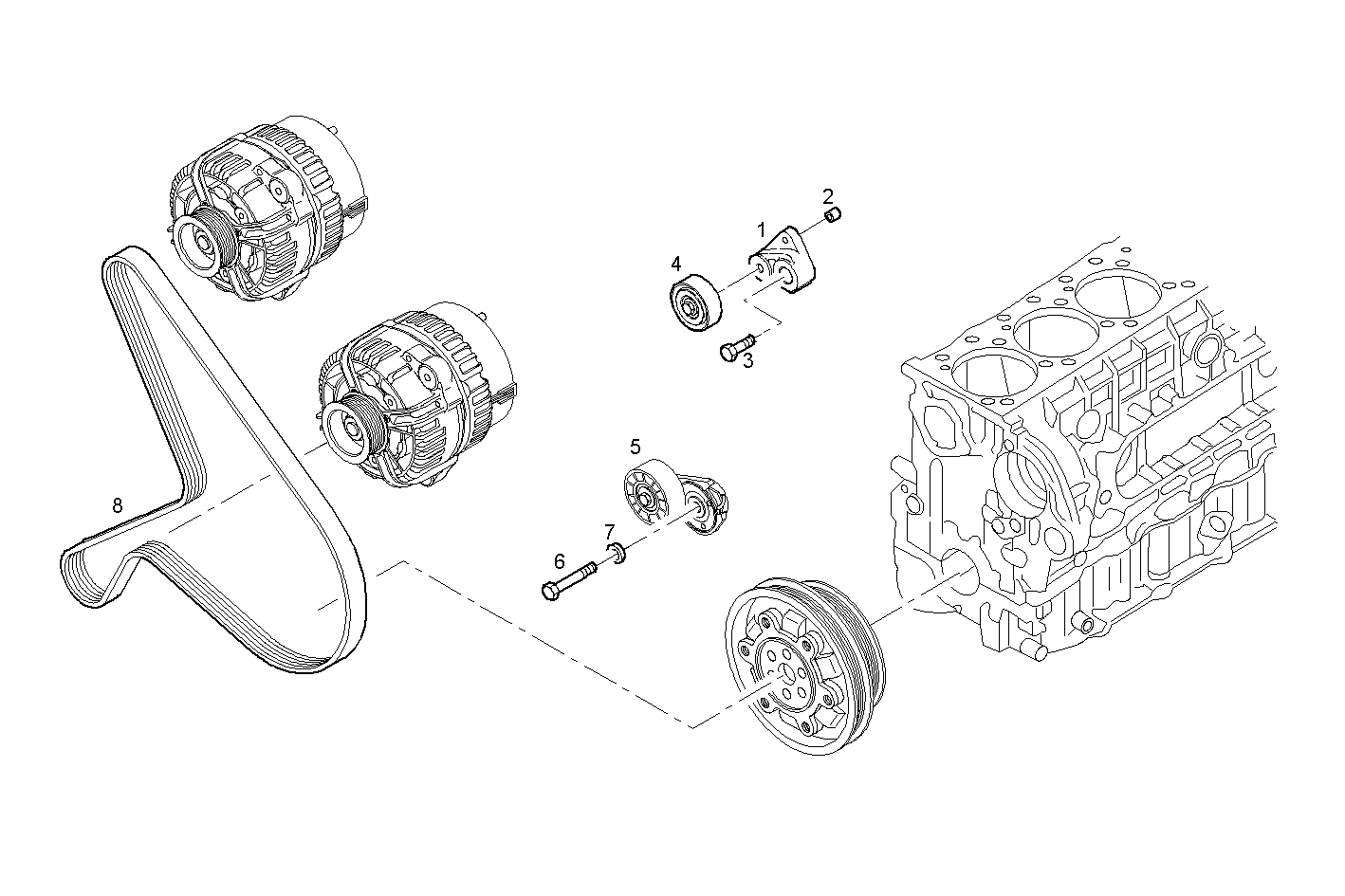

4023.000 GENERATOR DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 504027916 | BELT TENSIONER |
| 2 | 17221710 | DOWEL PIN |
| 3 | 16589025 | HEXAGON BOLT |
| 4 | 500346226 | BELT TENSIONER |
| 5 | 500346227 | BELT TENSIONER |
| 6 | 16692524 | CYLIND-HEAD SCREW M10X45 MM |
| 7 | 17800574 | SPRING WASHER Ø10,5X21 MM |
| 8 | 504032642 | ALTERNATOR BELT |
