F2BE0681A*BC13

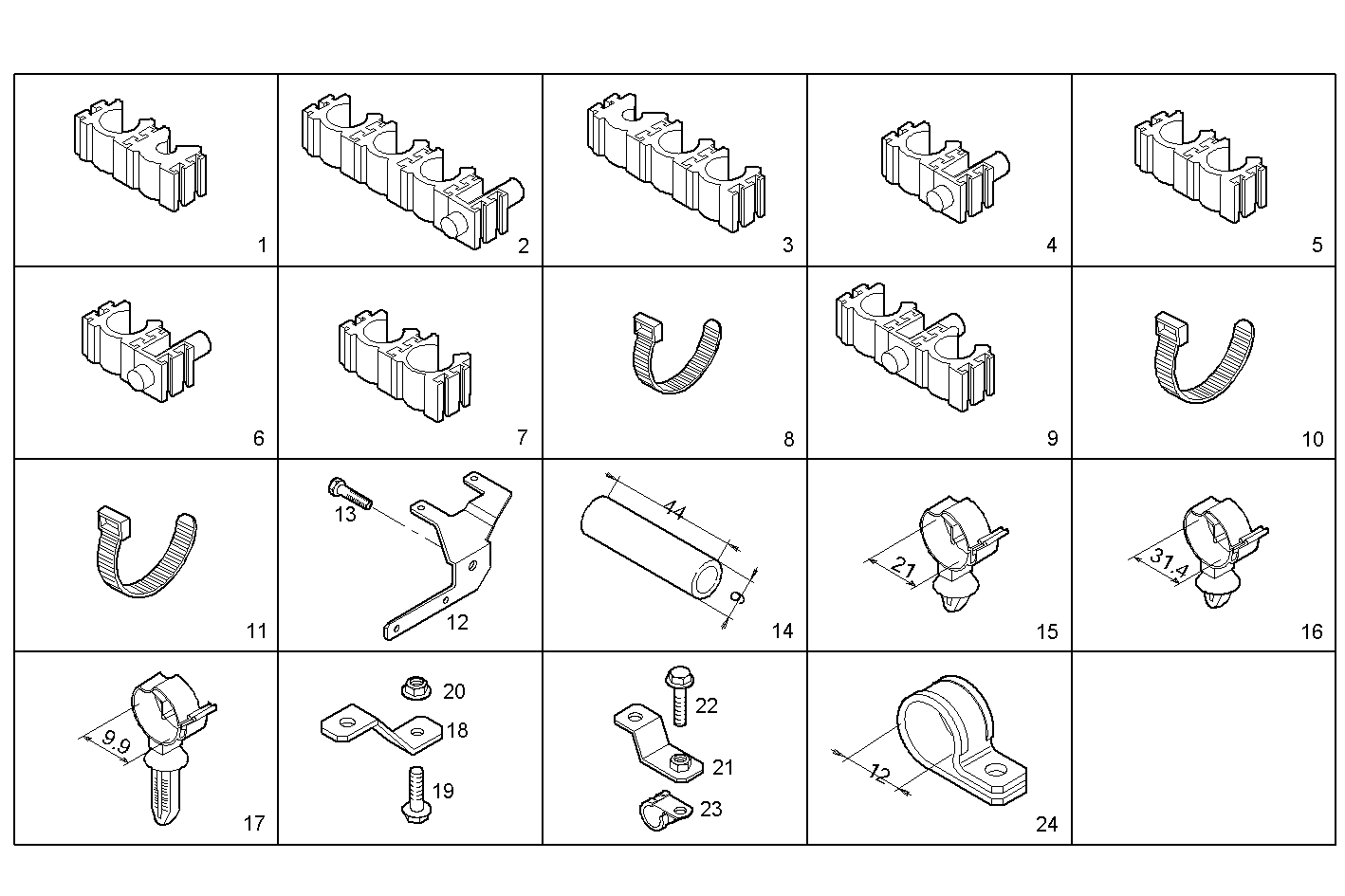

0407.000 FIXING EQUIPMENT
| Item |
Part number |
Description |
|
1 |
504072939 |
SPRING CLAMP |
|
2 |
504060998 |
SPRING CLAMP |
|
3 |
500306941 |
SPRING CLAMP |
|
4 |
504056799 |
SPRING CLAMP |
|
6 |
500389079 |
SPRING CLAMP |
|
7 |
504083218 |
SPRING CLAMP |
|
8 |
41040495 |
CLIP |
|
9 |
504083219 |
SPRING CLAMP |
|
10 |
99455033 |
CLIP |
|
11 |
42099096 |
CABLE STRAP |
|
12 |
500389099 |
RETAINER |
|
13 |
16592325 |
HEXAGON BOLT |
|
14 |
500341603 |
SPACING BAR |
|
15 |
504000061 |
CLIP |
|
16 |
504000063 |
CLIP |
|
17 |
504000059 |
CLIP |
|
18 |
504049754 |
FASTENING BRACKET |
|
19 |
16673635 |
HEXAGON BOLT M8X1.25X20 |
|
20 |
17044725 |
HEXAGON NUT M8 |
|
21 |
504060992 |
FASTENING BRACKET |
|
22 |
16597925 |
HEXAGON BOLT M8X14 MM |
|
23 |
17316592 |
PIPE CLIP |
|
24 |
17314390 |
PIPE CLIP |
