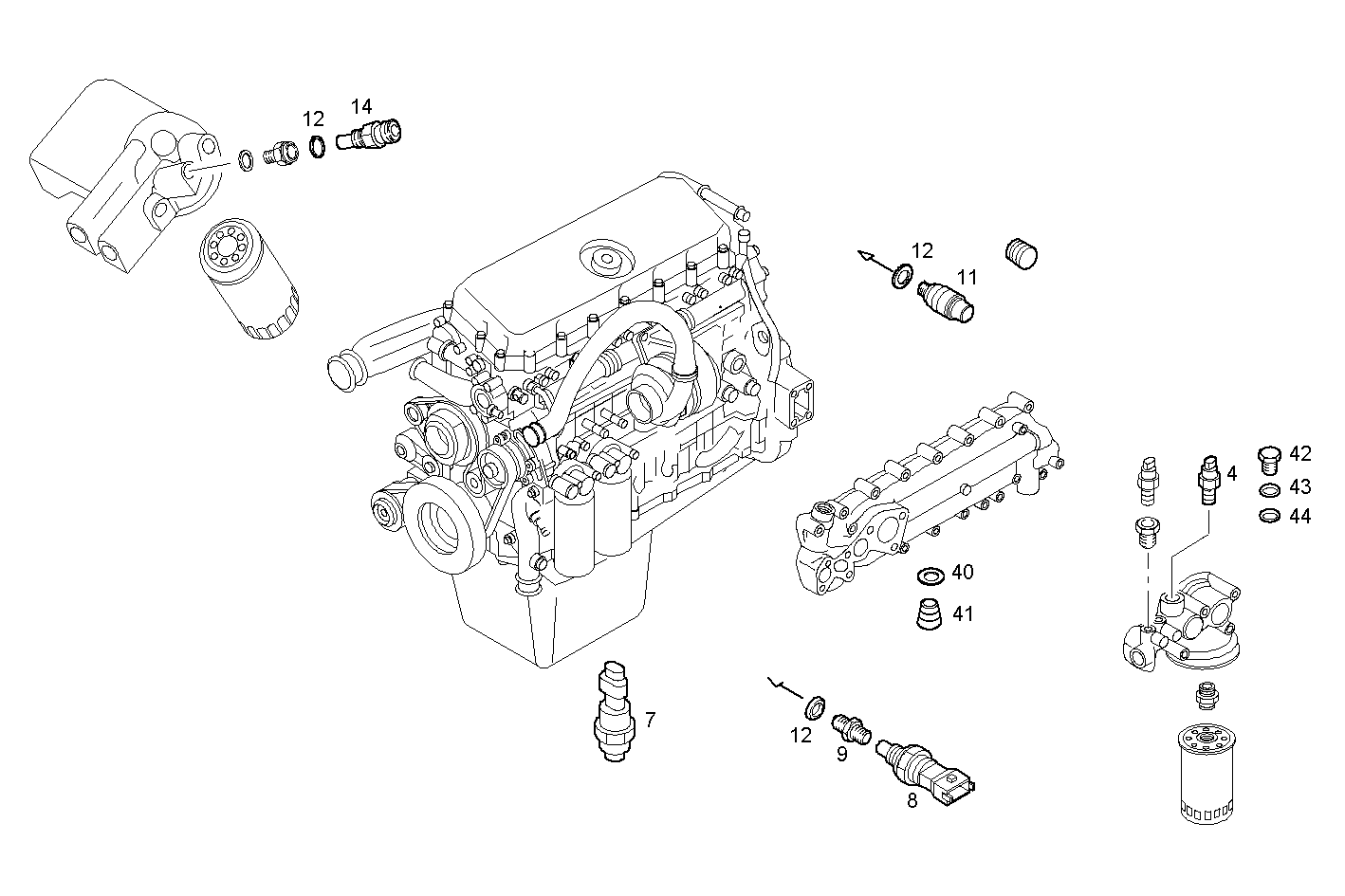

| Item |
Part number |
Description |
|
4 |
500351609 |
SENSOR OIL PRESSURE [UP TO # 50367] |
|
7 |
500382599 |
TEMP. TRANSMITTER PRESS. & TEMPER. |
|
8 |
500377533 |
SENSOR Pressure |
|
9 |
500356858 |
THREADED UNION |
|
11 |
500346371 |
CHOCKED FILTER INDIC. FILTRO BLOW-BY |
|
12 |
99489018 |
SEAL GASKET Ø14X22 MM SP=1,5 MM |
|
14 |
500346074 |
TRANSMITTER Pressure |
|
40 |
99489019 |
WASHER Ø16X24 MM SP=1,5 MM |
|
41 |
16992415 |
THREADED PLUG M16X1,5 |
|
42 |
500337200 |
THREADED PLUG [FROM # 50368] |
|
43 |
500337199 |
O-RING [FROM # 50368] |
|
44 |
17278181 |
O-RING [FROM # 50368] |
|
45 |
504051237 |
THREADED PLUG DIAM=1/4" |
