F2BE0681A*BC13

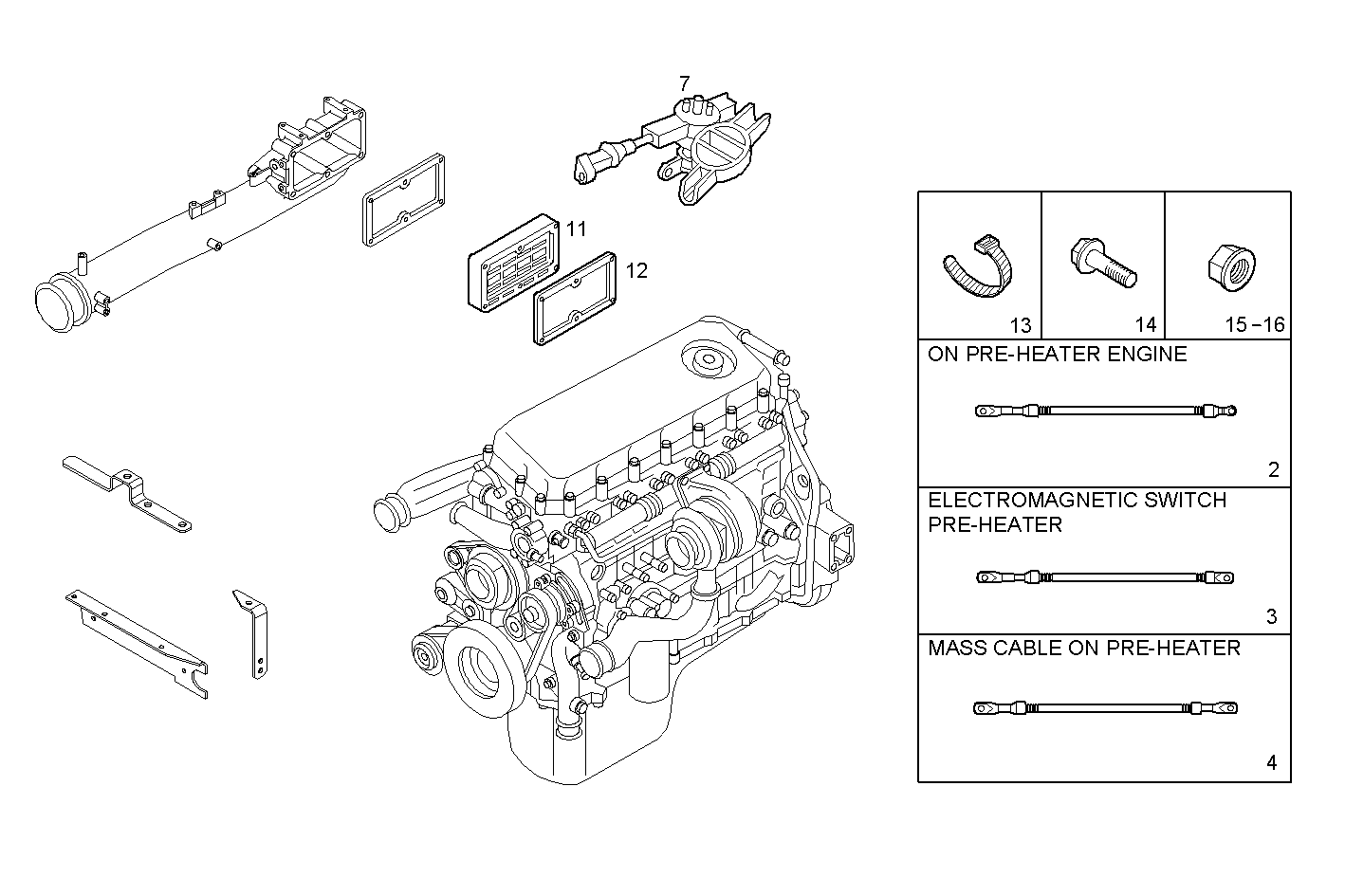

3650.044 THERMO-STARTER
| Item | Part number | Description |
|---|---|---|
| 2 | 41207261 | WIRE/CABLE ON PRE-HEATER ENGINE |
| 3 | 41200489 | WIRE/CABLE ELECTRON.SWITCH HEATER-ENGINE |
| 4 | 41207269 | WIRE/CABLE MASS CABLE ON PRE-HEATER ENGIN [UP TO # 45072] |
| 7 | 99449300 | RELAY 24v-150a |
| 11 | 99437042 | RESISTOR |
| 12 | 504026624 | FLAT ENGINE GASKET |
| 13 | 99455033 | CLIP |
| 14 | 16585625 | HEXAGON BOLT M6X12 |
| 15 | 16750225 | HEXAGON NUT M8 |
| 16 | 17044625 | HEXAGON NUT M6 |
