F2BE0681A*BC13

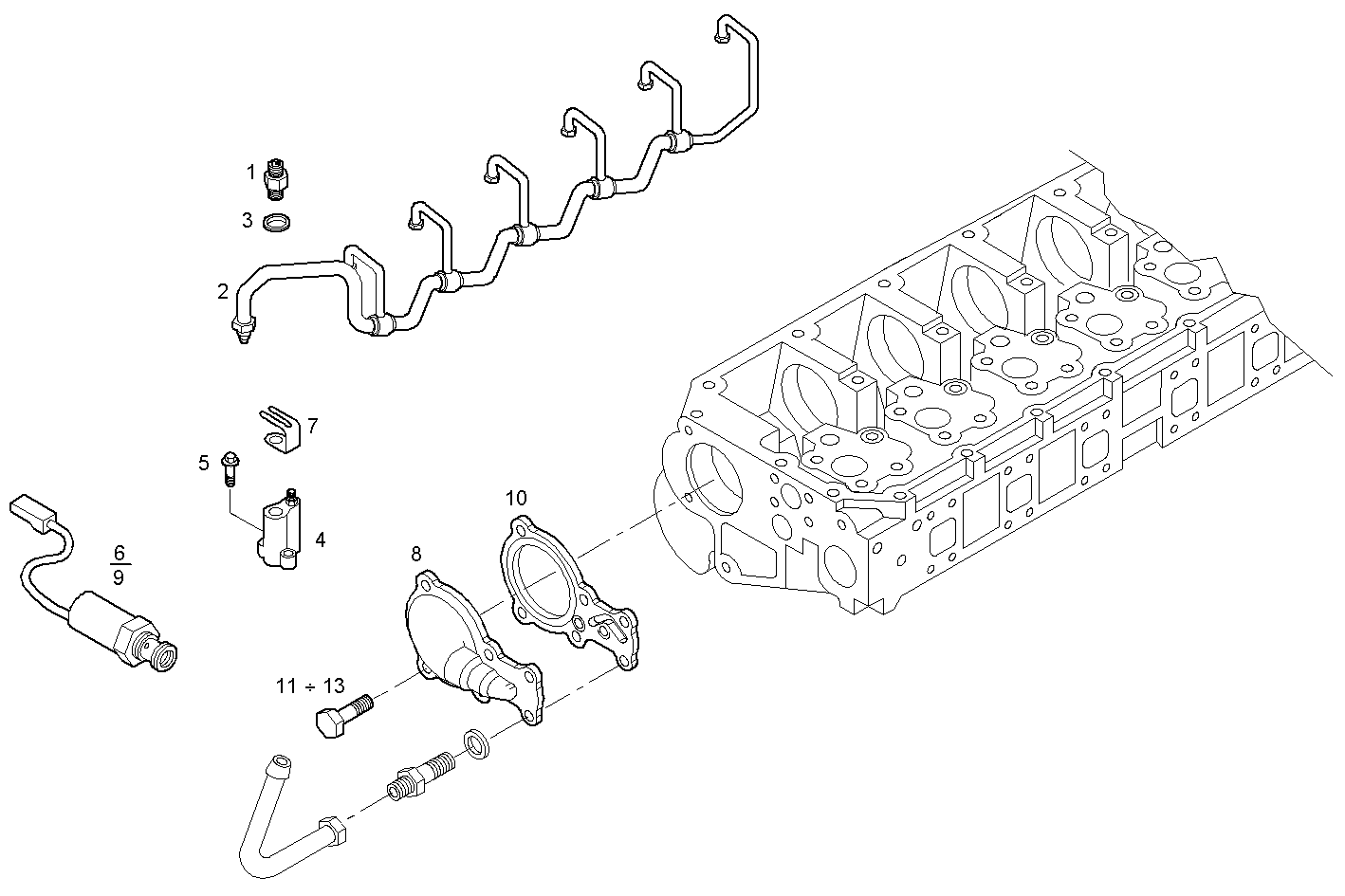

3700.000 ENGINE EXHAUST BRAKE

Iveco/FPT ENGINE EXHAUST BRAKE

Item Part number Description
1 504081274 THREADED UNION M16X1,5 - M18X1,5
2 99446255 OIL LINE
3 99489019 WASHER Ø16X24 MM SP=1,5 MM
4 504119399 ENGINE BRAKE VALVE
5 16707334 CYLIND-HEAD SCREW M8X30 MM
6 98496620 ELECTROVALVE [UP TO # 17841]
7 500376911 RETAINING SPRING
8 99450931 SUPPORT
9 99478611 ELECTROVALVE
10 504045790 FLAT ENGINE GASKET
11 16673735 HEXAGON BOLT M8X25 MM
12 16674034 HEXAGON BOLT M8X40 MM
13 16674134 HEXAGON BOLT M8X45 MM
