F2BE0681A*BC13

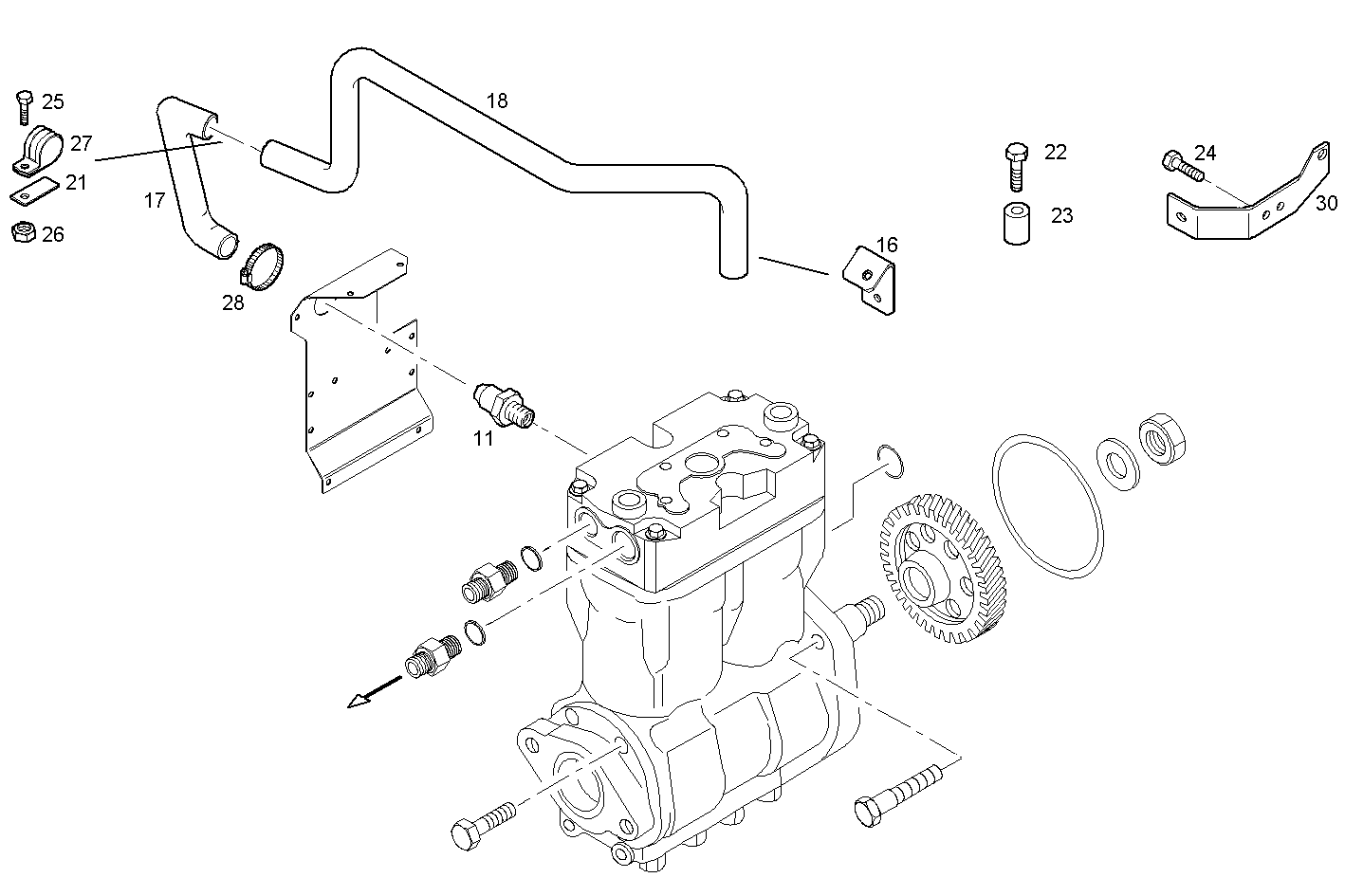

3819.000 AIR COMPESSOR SUCTION
| Item | Part number | Description |
|---|---|---|
| 11 | 41232261 | THREADED UNION |
| 16 | 41226267 | SUPPORT |
| 17 | 41226225 | AIR HOSE |
| 18 | 41226224 | AIR PIPE/DUCT |
| 21 | 41226271 | SUPPORT |
| 22 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 23 | 17816111 | SPACING BAR Ø8,5X18 MM SP=8 MM |
| 24 | 18137825 | HEXAGON BOLT M6X16 |
| 25 | 16673735 | HEXAGON BOLT M8X25 MM |
| 26 | 16984235 | HEXAGON NUT M8 |
| 27 | 41231094 | FASTENING BRACKET |
| 28 | 18088692 | HOSE CLIP m32-50 |
| 30 | 41213776 | RETAINER |
