F2BE0682F*B403

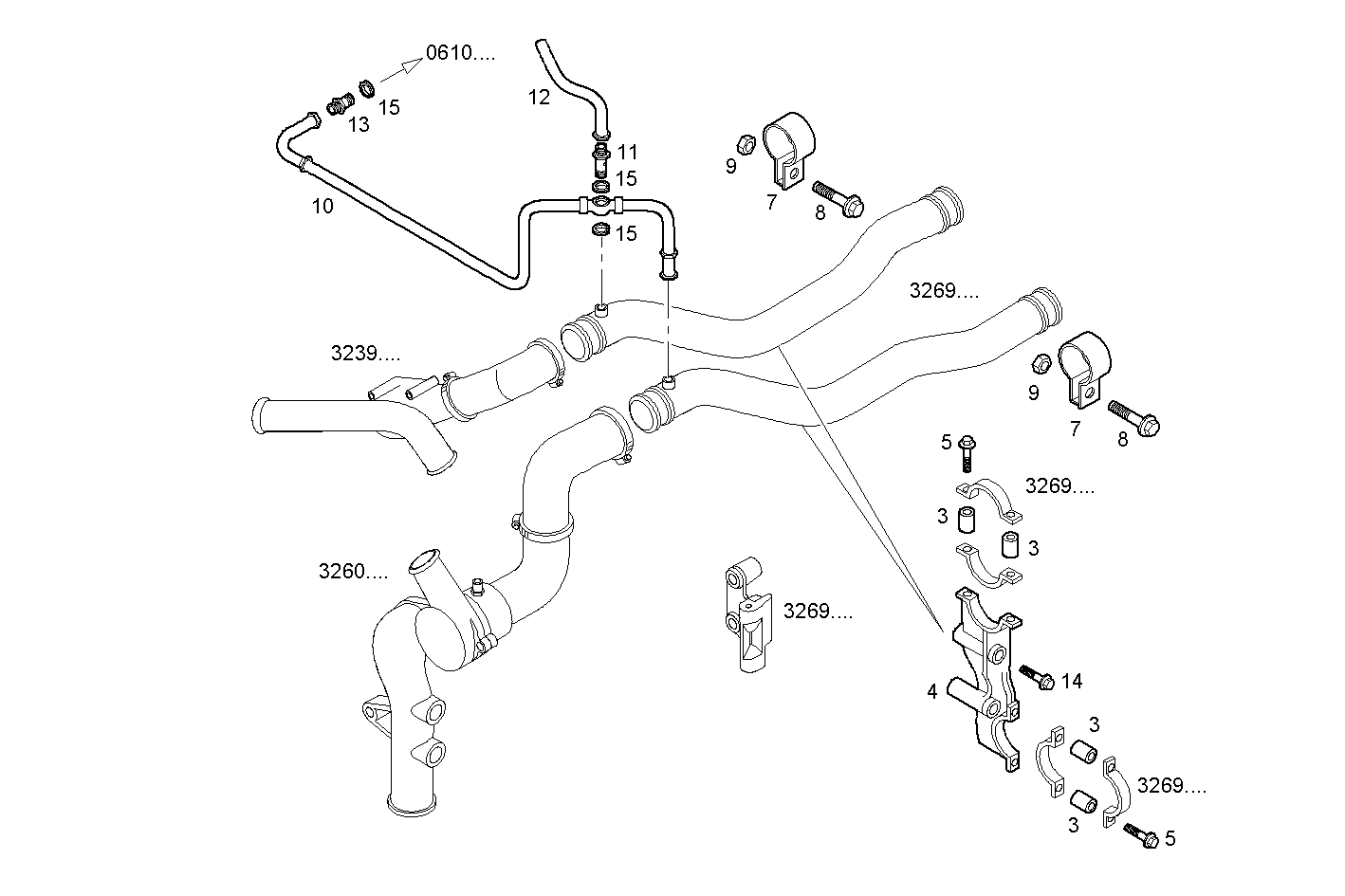

3252.009 BLEEDER TUBING
| Item | Part number | Description |
|---|---|---|
| 3 | 500347643 | SPACING BAR |
| 4 | 500333974 | FASTENING BRACKET |
| 5 | 16586925 | HEXAGON BOLT M8X50 MM |
| 7 | 41033181 | CLIP �50 MM |
| 8 | 16673735 | HEXAGON BOLT M8X25 MM |
| 9 | 16750225 | HEXAGON NUT M8 |
| 10 | 500357768 | RUBBER HOSE |
| 11 | 500357765 | PIPE SOCKET |
| 12 | 500360367 | RUBBER HOSE |
| 13 | 500337974 | PIPE SOCKET M10X1,5 |
| 14 | 16593025 | HEXAGON BOLT M10X90 MM |
| 15 | 98474306 | WASHER �12X20 MM SP=1,9 MM |
