F2BE0684A*B001

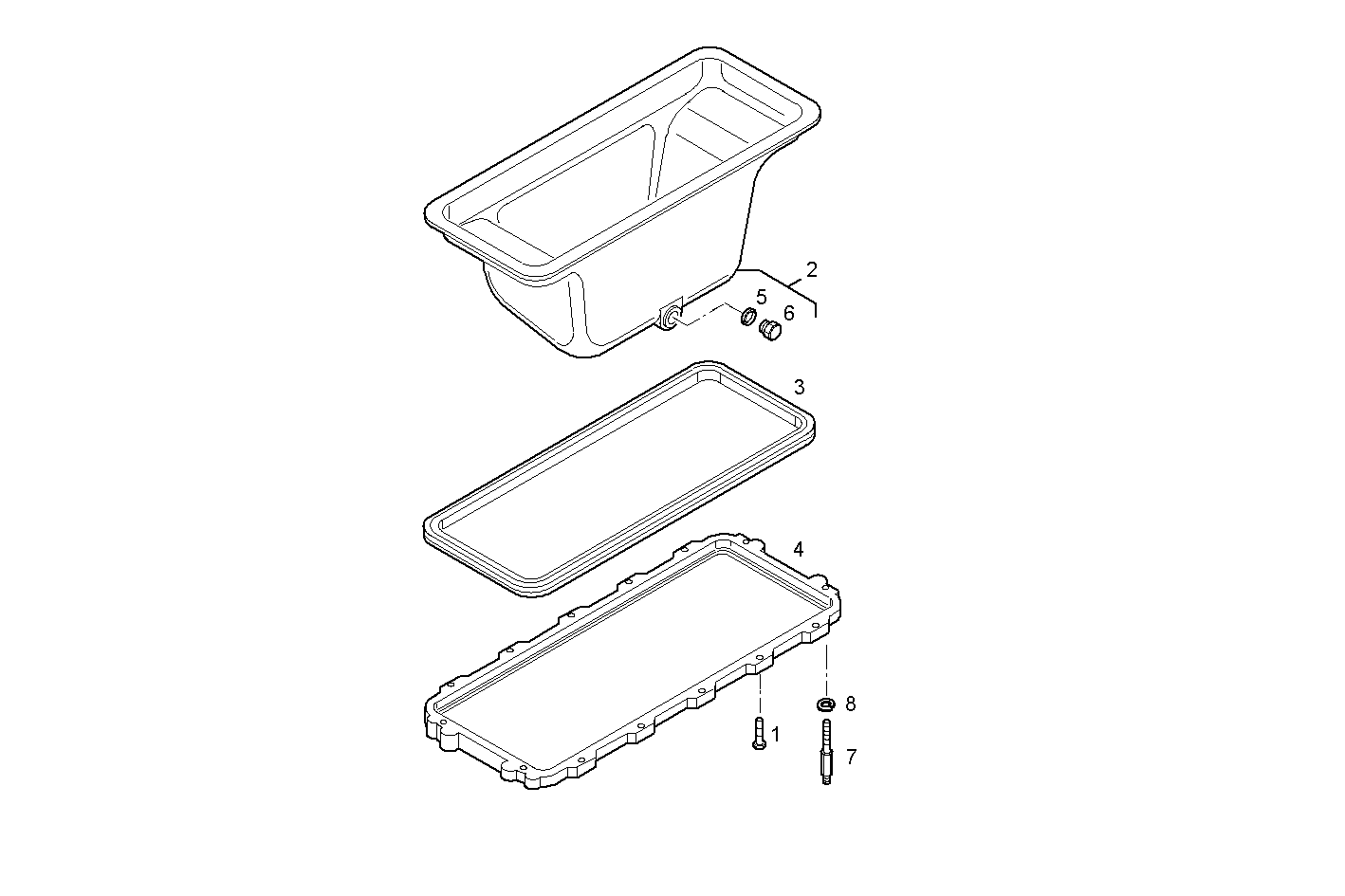

0420.155 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 16587524 | HEXAGON BOLT M10X45 MM |
| 2 | 500349704 | OIL SUMP ASSY |
| 3 | 99443902 | OIL SUMP GASKET |
| 4 | 99437092 | SPACING BAR |
| 5 | 16508460 | WASHER 22x27x1,5 |
| 6 | 16992611 | THREADED PLUG M22X1,5 |
| 7 | 504005577 | SPACING BAR |
| 8 | 17095024 | SPRING WASHER Ø10X18 MM |
