F2BE0684A*B002

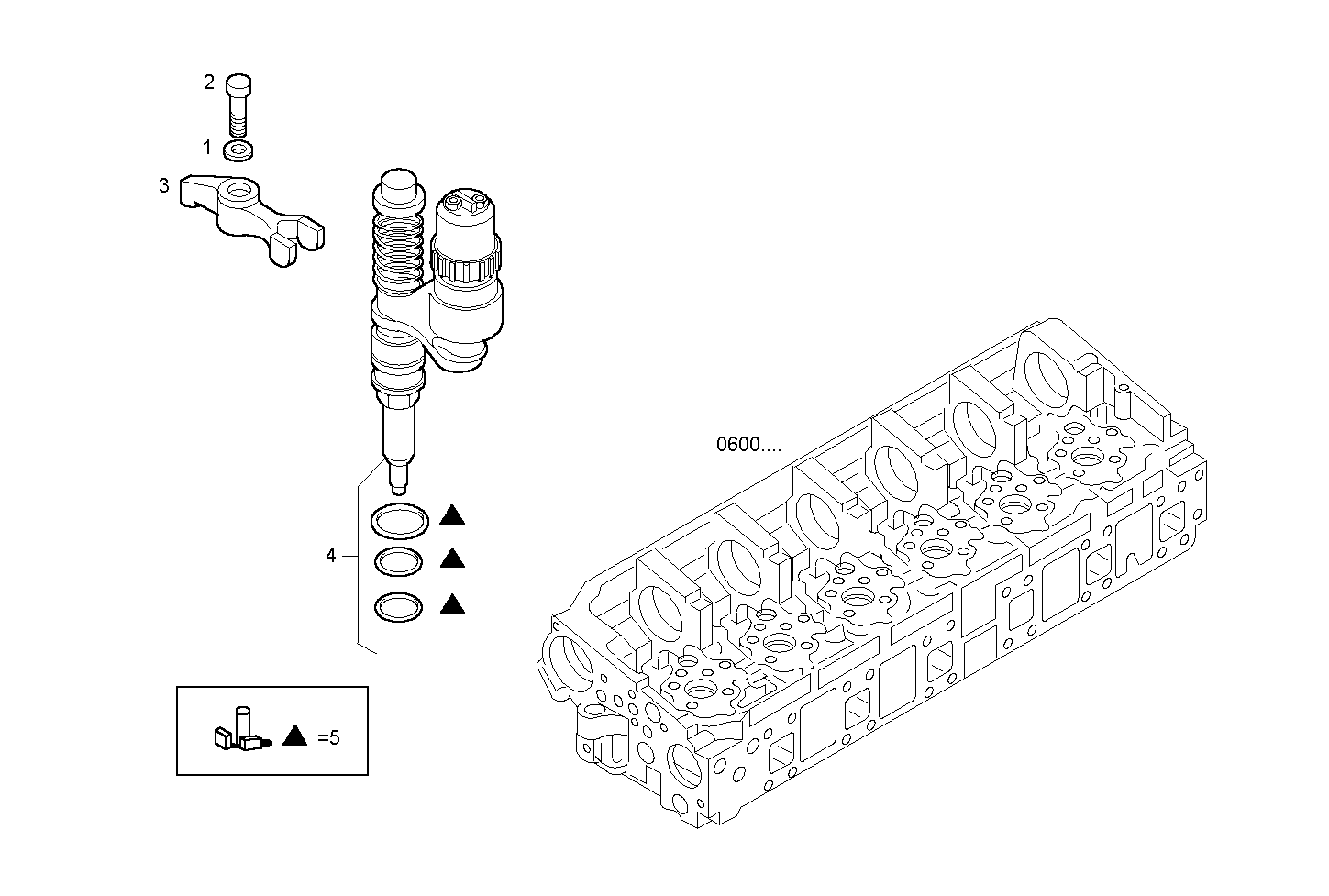

1420.109 INJECTORS
| Item | Part number | Description |
|---|---|---|
| 1 | 4700162 | WASHER Ø11,5 MM |
| 2 | 500356756 | CYLIND-HEAD SCREW M10X1,5X40 MM |
| 3 | 99466464 | FASTENING BRACKET |
| 4 | 500367520 | NOZZLE ASSY |
| 5 | 500350189 | REPAIR KIT |
