F2BE0684A*B002

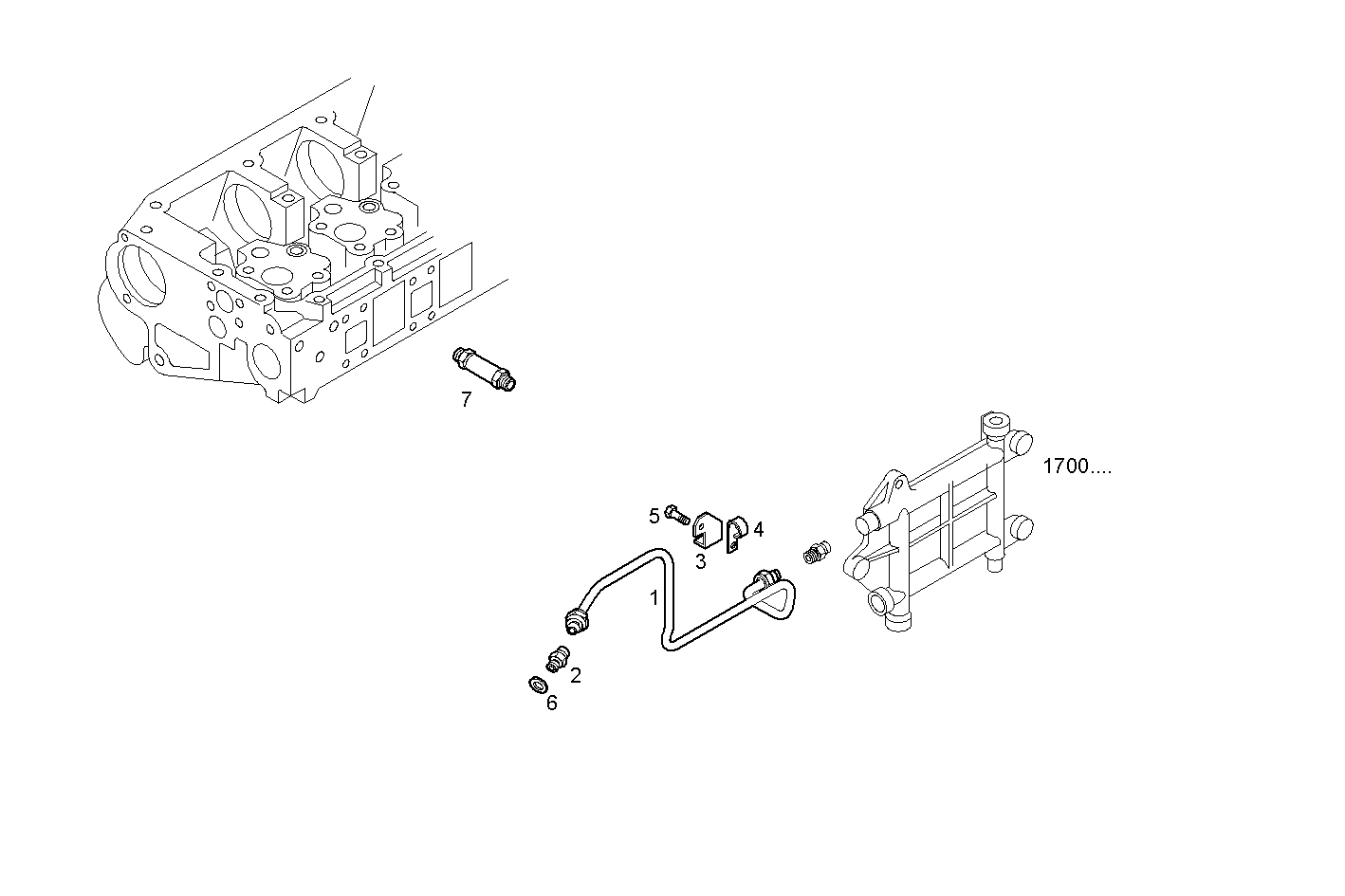

2031.015 FUEL LINES - INLET TO FUEL PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504003792 | FUEL LINE |
| 2 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 3 | 4791406 | RETAINER |
| 4 | 17316599 | PIPE CLIP |
| 5 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 6 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 7 | 500310076 | PIPE SOCKET M16X1,5 - M18X1,5 |
