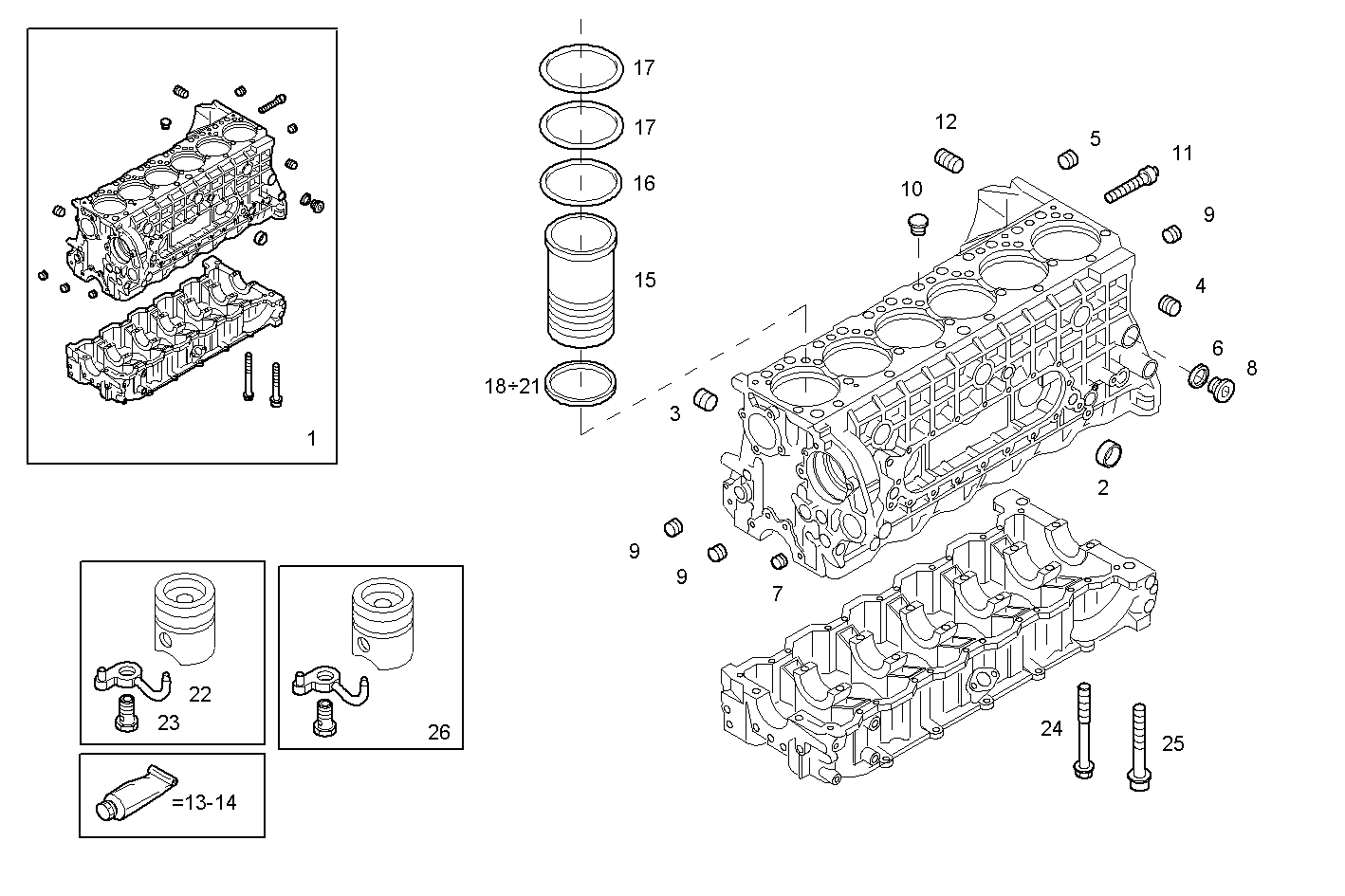

| Item |
Part number |
Description |
|
1 |
500357219 |
CRANKCASE ASSY |
|
2 |
16991370 |
LOCK PLUG Ø45 MM |
|
3 |
504051237 |
THREADED PLUG DIAM=1/4" |
|
4 |
99430692 |
THREADED PLUG 1/2'' |
|
5 |
504051236 |
THREADED PLUG DIAM=1/8" |
|
6 |
99469382 |
SEAL GASKET D=42x50x2 |
|
7 |
16990870 |
LOCK PLUG Ø28 MM |
|
8 |
4665029 |
LOCK PLUG M42X1,5 |
|
9 |
16990670 |
LOCK PLUG Ø22 MM |
|
10 |
14282170 |
LOCK PLUG Ø20 MM |
|
11 |
500356932 |
LOCK PLUG Ø12 MM |
|
12 |
99467554 |
DOWEL PIN Ø14 MM |
|
13 |
93162429 |
ADHESIVE/STICKER LOCTITE |
|
14 |
1903673 |
ADHESIVE/STICKER LOCTITE |
|
15 |
500333120 |
CYLINDER LINER STANDARD |
|
16 |
99459175 |
O-RING Ø120,24 MM SP=3,53 |
|
17 |
99459176 |
O-RING Ø120,24 MM SP=3,53 |
|
18 |
98456128 |
SPAC.RING CYL.LIN. SP=0,08 MM |
|
19 |
98456129 |
SPAC.RING CYL.LIN. SP=0,1 MM |
|
20 |
98456130 |
SPAC.RING CYL.LIN. SP=0,12 MM |
|
21 |
500350504 |
SPAC.RING CYL.LIN. SP=0,14 MM |
|
22 |
99445338 |
OIL NOZZLE [UP TO # 74174] |
|
23 |
99474718 |
SCREW CONNECTOR M12X1,5 [UP TO # 74174] |
|
24 |
500354581 |
HEXAGON BOLT M16X2X156 MM |
|
25 |
500354582 |
HEXAGON BOLT M10X1,5X120 MM |
|
26 |
504199600 |
OIL NOZZLE [FROM # 74175] |
