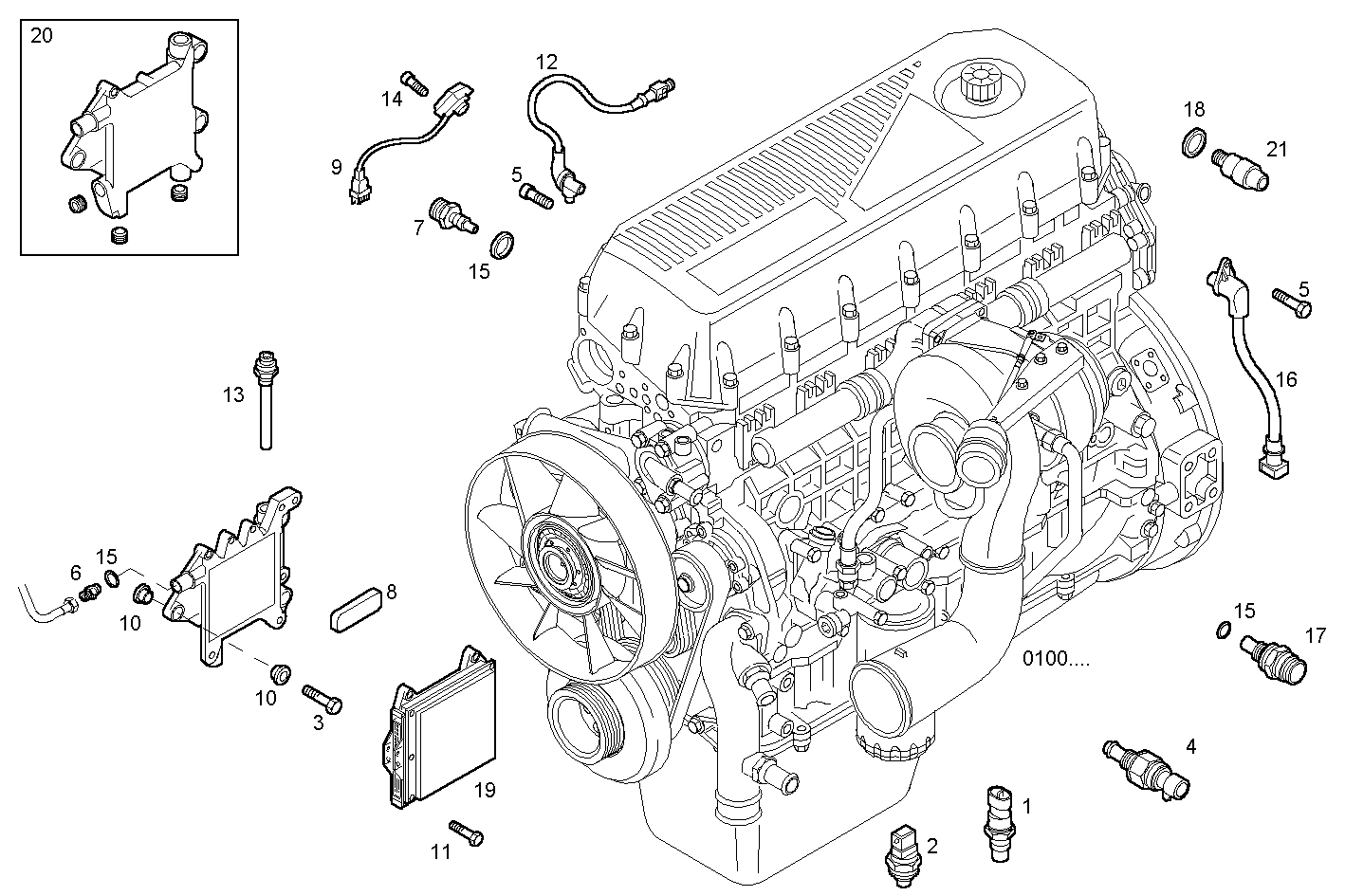

| Item |
Part number |
Description |
|
1 |
500386057 |
TEMP. TRANSMITTER |
|
2 |
500377533 |
SENSOR Pressure |
|
3 |
16674134 |
HEXAGON BOLT M8X45 MM |
|
4 |
500346074 |
TRANSMITTER Pressure |
|
5 |
16688924 |
CYLIND-HEAD SCREW M6X10 MM |
|
6 |
41031569 |
THREADED UNION M16X1,5 - M18X1,5 MM" |
|
7 |
98412656 |
TEMP. TRANSMITTER |
|
8 |
99474206 |
RUBBER PLUG |
|
9 |
500360579 |
SENSOR Pressure |
|
10 |
98498817 |
DOWEL |
|
11 |
16586625 |
HEXAGON BOLT M8X35 MM |
|
12 |
99450797 |
SENSOR camshaft. |
|
13 |
500342082 |
THREADED UNION |
|
14 |
16597224 |
HEXAGON BOLT M6X18 MM |
|
15 |
99489019 |
WASHER �16X24 MM SP=1,5 MM |
|
16 |
504005575 |
SENSOR crankshaft. |
|
17 |
500382599 |
TEMP. TRANSMITTER PRESS. & TEMPER. |
|
18 |
99489018 |
SEAL GASKET �14X22 MM SP=1,5 MM |
|
19 |
8093995 |
ELECTR.CONTR.UNIT E.C.U. |
|
20 |
500371989 |
SUPPORT |
|
21 |
500346371 |
CHOCKED FILTER INDIC. FILTRO BLOW-BY |
